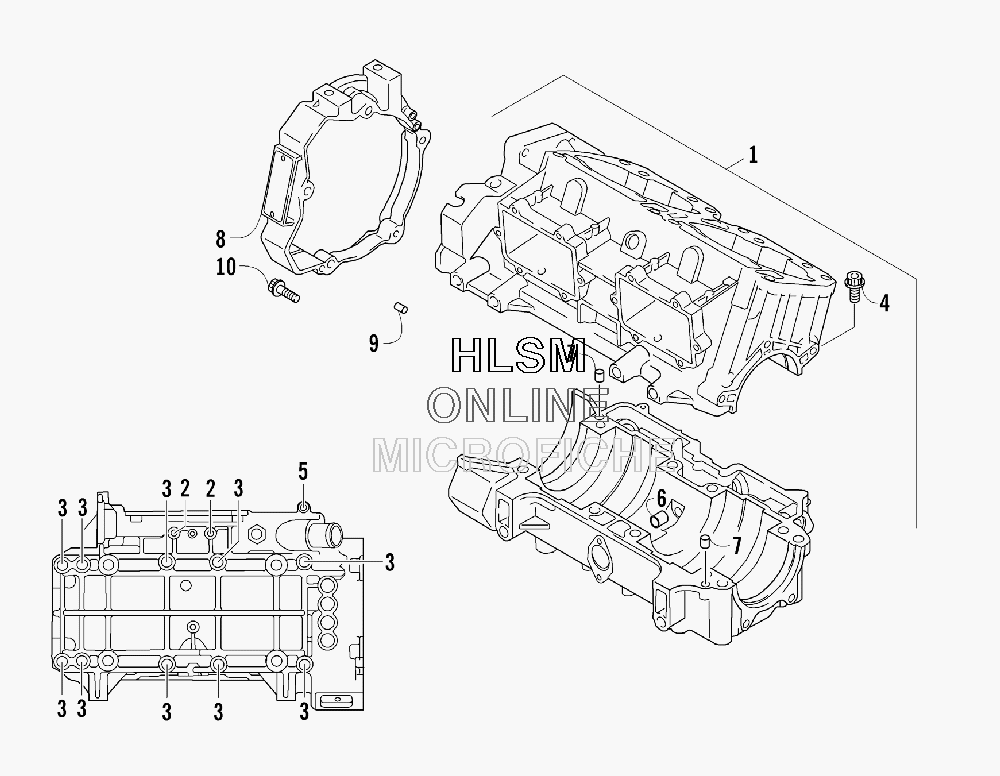

CRANKCASE ASSEMBLY для Arctic Cat F1000 EFI SNO PRO (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13007-251 CRANKCASE (INC. 2-7)CRANKCASE (INC. 2-7)
-
23006-650 ...BOLT...BOLT
-
33007-252 ...BOLT...BOLT
-
43007-445 ...BOLT...BOLT
-
53007-381 ...BOLT...BOLT
-
63007-253 ...BUSHING...BUSHING
-
73005-206 ...PIN, DOWEL...PIN, DOWEL
-
83007-254 CASE, MAGNETOCASE, MAGNETO
-
93006-547 PIN, DOWELPIN, DOWEL
-
103007-256 SCREW, CAPSCREW, CAP
