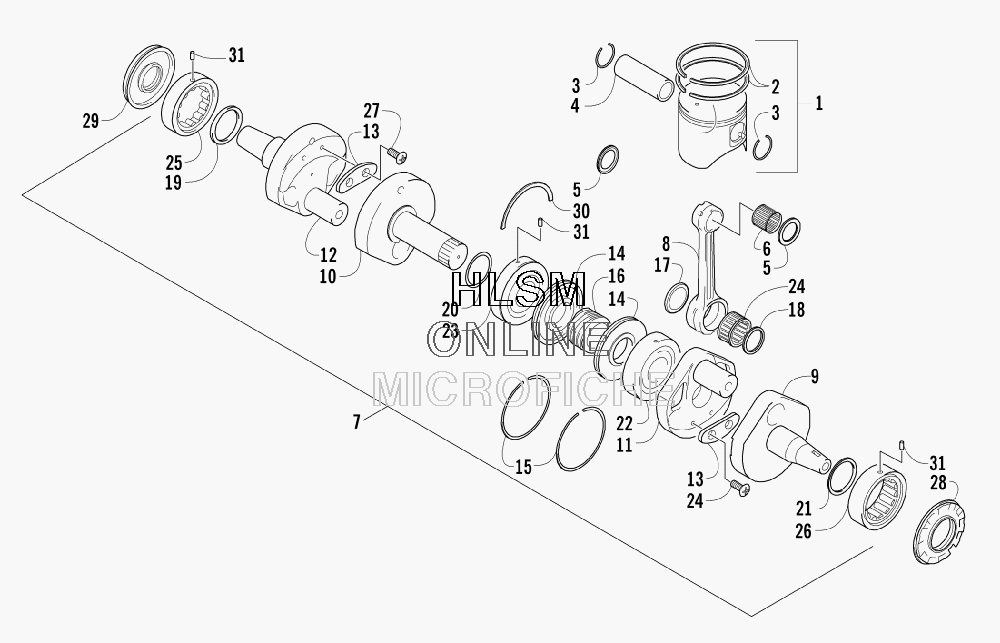

PISTON AND CRANKSHAFT для Arctic Cat F1000 EFI SNO PRO (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
13007-257 PISTON SET (INC. 2-3)PISTON SET (INC. 2-3)
-
23007-258 ...RING SET, PISTON...RING SET, PISTON
-
33008-585 ...CIRCLIP, PISTON...CIRCLIP, PISTON
-
43007-259 PIN, PISTONPIN, PISTON
-
53008-582 WASHERWASHER
-
63008-583 BEARINGBEARING
-
73007-260 CRANKSHAFT ASSEMBLY (INC. 8-27)CRANKSHAFT ASSEMBLY (INC. 8-27)
-
83007-261 ...CONNECTING ROD...CONNECTING ROD
-
93007-262 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
103007-263 ...CRANKSHAFT - MIDDLE...CRANKSHAFT - MIDDLE
-
113007-264 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
123007-265 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
133007-266 ...BALANCER, CRANKSHAFT...BALANCER, CRANKSHAFT
-
143007-267 ...RACE, MIDDLE CRANK SEAL...RACE, MIDDLE CRANK SEAL
-
153007-268 ...RING, MIDDLE CRANK SEAL...RING, MIDDLE CRANK SEAL
-
163007-269 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
173007-270 ...WASHER...WASHER
-
183007-271 ...WASHER...WASHER
-
193007-272 ...WASHER, CRANKSHAFT - LEFT...WASHER, CRANKSHAFT - LEFT
-
203007-273 ...WASHER...WASHER
-
213007-274 ...WASHER, CRANKSHAFT - RIGHT...WASHER, CRANKSHAFT - RIGHT
-
223007-275 ...BEARING...BEARING
-
233007-276 ...BEARING...BEARING
-
243007-277 ...BEARING, CRANKSHAFT...BEARING, CRANKSHAFT
-
253007-278 ...BEARING ASSEMBLY - LEFT...BEARING ASSEMBLY - LEFT
-
263007-279 ...BEARING ASSEMBLY - RIGHT...BEARING ASSEMBLY - RIGHT
-
273007-440 ...SCREW...SCREW
-
283007-280 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
293007-281 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
303004-157 C-RINGC-RING
-
313003-658 PIN, ALIGNMENTPIN, ALIGNMENT
