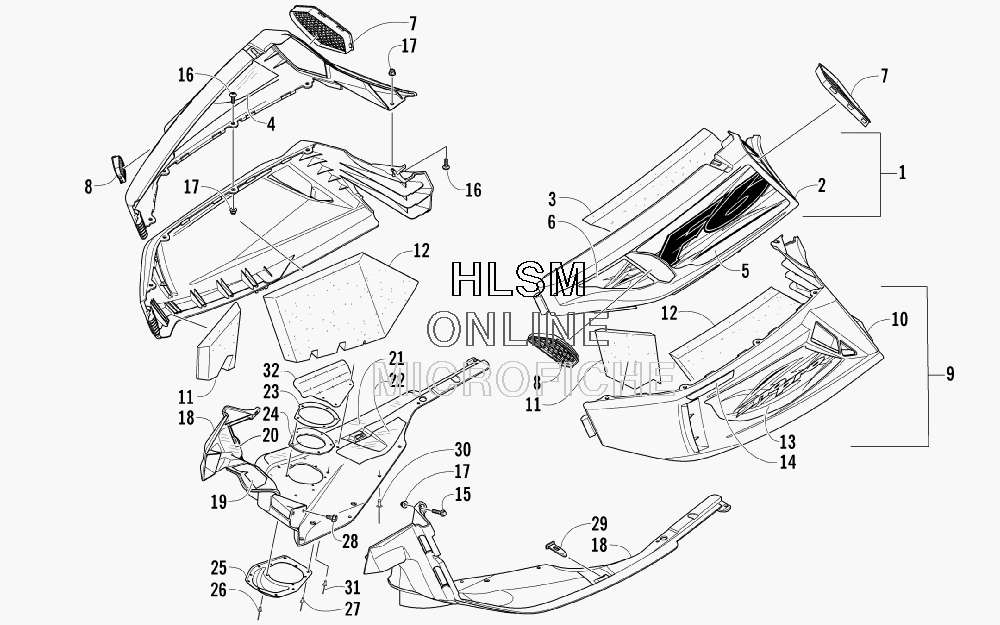

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F6 EFI SNO PRO (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
12718-316 PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (GREEN)PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (GREEN)
-
12718-317 PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (GREEN)PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (GREEN)
-
12718-306 PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (BLACK)PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (BLACK)
-
12718-307 PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (BLACK)PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (BLACK)
-
12718-320 PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (ORANGE)PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-6) (ORANGE)
-
12718-321 PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (ORANGE)PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3 AND 5-6) (ORANGE)
-
22718-284 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (GREEN)...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (GREEN)
-
22718-285 ...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (GREEN)...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (GREEN)
-
22718-288 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (BLACK)...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (BLACK)
-
22718-289 ...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (BLACK)...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (BLACK)
-
22718-292 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (ORANGE)...PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 3-4) (ORANGE)
-
22718-293 ...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (ORANGE)...PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 3) (ORANGE)
-
30617-514 ......FOAM, UPPER SIDE PANEL - RIGHT......FOAM, UPPER SIDE PANEL - RIGHT
-
30617-515 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
44606-799 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
57611-708 ...DECAL, UPPER SIDE PANEL - REAR - RIGHT (GREEN)...DECAL, UPPER SIDE PANEL - REAR - RIGHT (GREEN)
-
57611-709 ...DECAL, UPPER SIDE PANEL - REAR - LEFT (GREEN)...DECAL, UPPER SIDE PANEL - REAR - LEFT (GREEN)
-
57611-642 ...DECAL, UPPER SIDE PANEL - REAR - RIGHT (BLACK)...DECAL, UPPER SIDE PANEL - REAR - RIGHT (BLACK)
-
57611-643 ...DECAL, UPPER SIDE PANEL - REAR - LEFT (BLACK)...DECAL, UPPER SIDE PANEL - REAR - LEFT (BLACK)
-
57611-714 ...DECAL, UPPER SIDE PANEL - REAR - RIGHT (ORANGE)...DECAL, UPPER SIDE PANEL - REAR - RIGHT (ORANGE)
-
57611-715 ...DECAL, UPPER SIDE PANEL - REAR - LEFT (ORANGE)...DECAL, UPPER SIDE PANEL - REAR - LEFT (ORANGE)
-
67611-720 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (GREEN)...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (GREEN)
-
67611-721 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (GREEN)...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (GREEN)
-
67611-648 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (BLACK)...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (BLACK)
-
67611-649 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (BLACK)...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (BLACK)
-
67611-722 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (ORANGE)...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT (ORANGE)
-
67611-723 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (ORANGE)...DECAL, UPPER SIDE PANEL - FORWARD - LEFT (ORANGE)
-
74606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT (GREEN) (ORANGE)VENT, UPPER SIDE PANEL - REAR - RIGHT (GREEN) (ORANGE)
-
74606-651 VENT, UPPER SIDE PANEL - REAR - LEFT (GREEN) (ORANGE)VENT, UPPER SIDE PANEL - REAR - LEFT (GREEN) (ORANGE)
-
74606-702 VENT, UPPER SIDE PANEL - REAR - RIGHT - PEWTER (BLACK)VENT, UPPER SIDE PANEL - REAR - RIGHT - PEWTER (BLACK)
-
74606-703 VENT, UPPER SIDE PANEL - REAR - LEFT - PEWTER (BLACK)VENT, UPPER SIDE PANEL - REAR - LEFT - PEWTER (BLACK)
-
84606-662 VENT, UPPER SIDE PANEL - RIGHT (GREEN) (ORANGE)VENT, UPPER SIDE PANEL - RIGHT (GREEN) (ORANGE)
-
84606-663 VENT, UPPER SIDE PANEL - LEFT (GREEN) (ORANGE)VENT, UPPER SIDE PANEL - LEFT (GREEN) (ORANGE)
-
84606-704 VENT, UPPER SIDE PANEL - RIGHT - PEWTER (BLACK)VENT, UPPER SIDE PANEL - RIGHT - PEWTER (BLACK)
-
84606-705 VENT, UPPER SIDE PANEL - LEFT - PEWTER (BLACK)VENT, UPPER SIDE PANEL - LEFT - PEWTER (BLACK)
-
92718-324 PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (GREEN)PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (GREEN)
-
92718-325 PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (GREEN)PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (GREEN)
-
92718-326 PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (BLACK)PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (BLACK)
-
92718-327 PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (BLACK)PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (BLACK)
-
92718-328 PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (ORANGE)PANEL, SIDE - LOWER - RIGHT W/DECALS (INC. 10-13) (ORANGE)
-
92718-329 PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (ORANGE)PANEL, SIDE - LOWER - LEFT W/DECALS (INC. 10-13) (ORANGE)
-
102718-322 ...PANEL, SIDE - LOWER - RIGHT W/O DECALS (INC. 11-12)...PANEL, SIDE - LOWER - RIGHT W/O DECALS (INC. 11-12)
-
102718-323 ...PANEL, SIDE - LOWER - LEFT W/O DECALS (INC. 11-12)...PANEL, SIDE - LOWER - LEFT W/O DECALS (INC. 11-12)
-
110617-546 ......FOAM, LOWER SIDE PANEL - FRONT - RIGHT......FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
110617-550 ......FOAM, LOWER SIDE PANEL - FRONT - LEFT......FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
120617-548 ......FOAM, LOWER SIDE PANEL - REAR - RIGHT......FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
120617-551 ......FOAM, LOWER SIDE PANEL - REAR - LEFT......FOAM, LOWER SIDE PANEL - REAR - LEFT
-
137611-622 ...DECAL, LOWER SIDE PANEL - RIGHT (GREEN)...DECAL, LOWER SIDE PANEL - RIGHT (GREEN)
-
137611-623 ...DECAL, LOWER SIDE PANEL - LEFT (GREEN)...DECAL, LOWER SIDE PANEL - LEFT (GREEN)
-
137611-652 ...DECAL, LOWER SIDE PANEL - RIGHT (BLACK)...DECAL, LOWER SIDE PANEL - RIGHT (BLACK)
-
137611-653 ...DECAL, LOWER SIDE PANEL - LEFT (BLACK)...DECAL, LOWER SIDE PANEL - LEFT (BLACK)
-
137611-682 ...DECAL, LOWER SIDE PANEL - RIGHT (ORANGE)...DECAL, LOWER SIDE PANEL - RIGHT (ORANGE)
-
137611-683 ...DECAL, LOWER SIDE PANEL - LEFT (ORANGE)...DECAL, LOWER SIDE PANEL - LEFT (ORANGE)
-
148611-181 DECAL, REFLECTORDECAL, REFLECTOR
-
158408-635 SCREW, CAPSCREW, CAP
-
168408-620 SCREW, MACHINESCREW, MACHINE
-
178427-602 NUT, LOCKNUT, LOCK
-
183706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
183706-707 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
194606-796 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
204606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
214606-798 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
224606-797 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
231712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
242612-156 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
251712-329 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
268060-510 RIVET, BLINDRIVET, BLIND
-
270623-778 RIVET, BULBRIVET, BULB
-
280623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
294606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
308061-708 RIVET, BLINDRIVET, BLIND
-
318061-508 RIVETRIVET
-
322612-268 SHIELD, HEATSHIELD, HEAT
