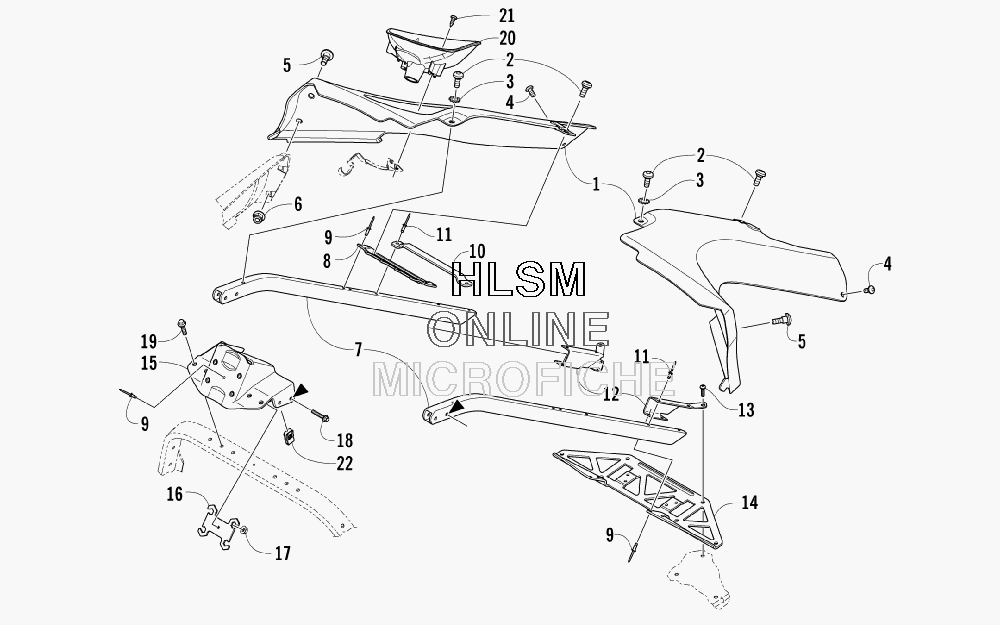

SEAT SUPPORT ASSEMBLY для Arctic Cat F8 EFI (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
13706-710 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
14606-891 SPAR, REAR - LEFTSPAR, REAR - LEFT
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
38053-242 WASHER, LOCKWASHER, LOCK
-
48470-510 SCREW, MACHINESCREW, MACHINE
-
50423-355 SCREW, SHOULDERSCREW, SHOULDER
-
68427-602 NUT, LOCKNUT, LOCK
-
74606-748 TUBE, SUPPORT - RIGHTTUBE, SUPPORT - RIGHT
-
74606-749 TUBE, SUPPORT - LEFTTUBE, SUPPORT - LEFT
-
84606-329 BRACKET, CROSSOVERBRACKET, CROSSOVER
-
98060-488 RIVETRIVET
-
104606-745 BRACKET, CROSSOVER - SEAT-BASEBRACKET, CROSSOVER - SEAT-BASE
-
118060-484 RIVETRIVET
-
124606-746 BRACKET, NON-ADJUSTABLE - RIGHTBRACKET, NON-ADJUSTABLE - RIGHT
-
124606-747 BRACKET, NON-ADJUSTABLE - LEFTBRACKET, NON-ADJUSTABLE - LEFT
-
138470-520 SCREW, MACHINESCREW, MACHINE
-
144606-323 PLATE, SUPPORT - LOWERPLATE, SUPPORT - LOWER
-
154606-328 PLATE, SUPPORT - UPPERPLATE, SUPPORT - UPPER
-
160605-899 BRACKET, NUT HOLDERBRACKET, NUT HOLDER
-
178424-602 NUT, LOCKNUT, LOCK
-
188408-535 SCREW, CAPSCREW, CAP
-
198408-625 SCREW, CAPSCREW, CAP
-
204606-683 CUP, RECOILCUP, RECOIL
-
210623-727 SCREWSCREW
-
221623-637 CLIP, U-NUTCLIP, U-NUT
