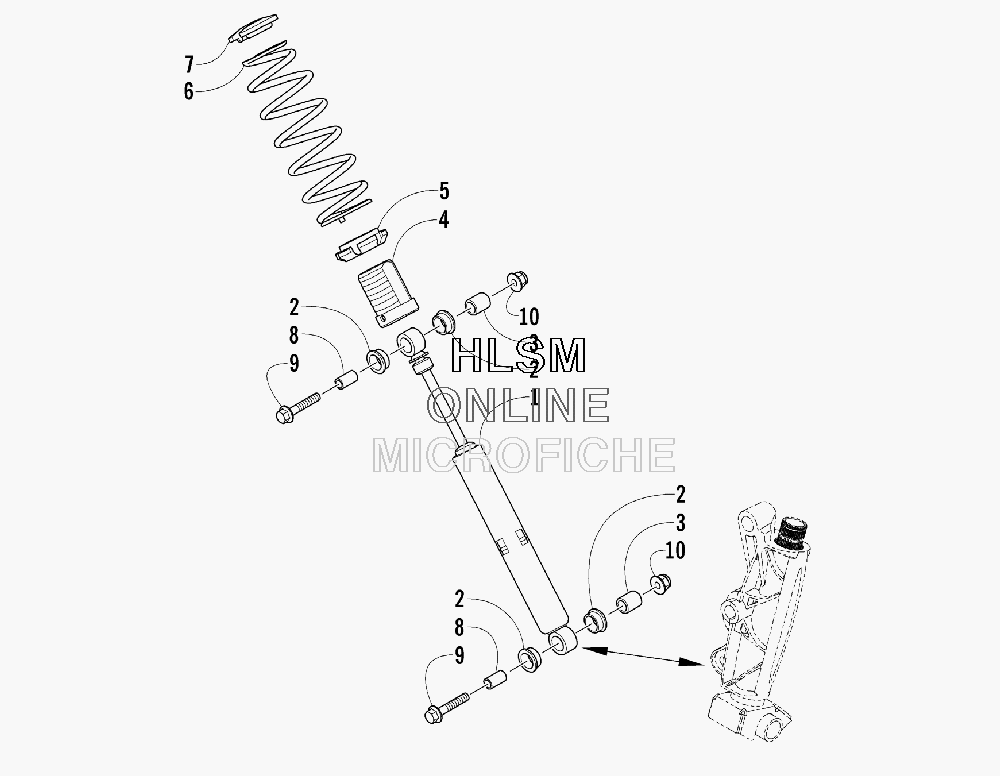

SHOCK ABSORBER ASSEMBLY для Arctic Cat JAGUAR Z1 1100 EFI (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
12703-176 SHOCK, SKI (INC. 2-3)SHOCK, SKI (INC. 2-3)
-
21604-262 ...BUSHING, SHOCK...BUSHING, SHOCK
-
31604-397 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
40603-147 SLEEVE, THREADED - SHOCKSLEEVE, THREADED - SHOCK
-
50603-259 NUT, RETAINER - SPRINGNUT, RETAINER - SPRING
-
62703-186 SPRING, COMPRESSION - GREEN (GREEN)SPRING, COMPRESSION - GREEN (GREEN)
-
60703-937 SPRING, COMPRESSION - PLATINUM (BLACK)SPRING, COMPRESSION - PLATINUM (BLACK)
-
62703-185 SPRING, COMPRESSION - RED (RED)SPRING, COMPRESSION - RED (RED)
-
71603-889 RETAINER, SPRINGRETAINER, SPRING
-
83604-109 SLEEVE, SHOCKSLEEVE, SHOCK
-
98408-055 SCREW, CAPSCREW, CAP
-
108427-002 NUT, LOCKNUT, LOCK
