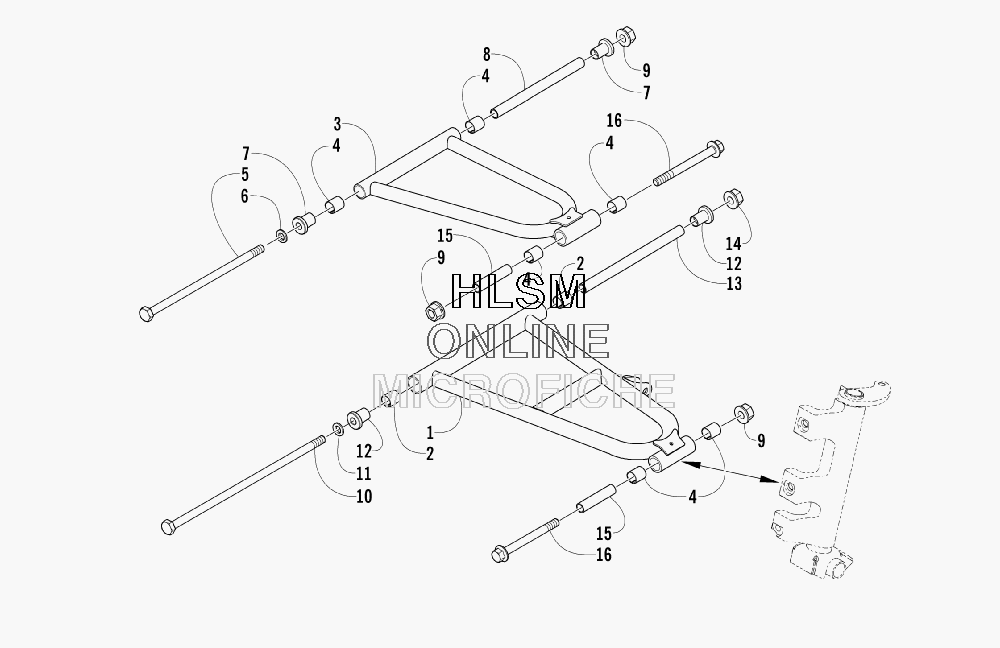

A-ARM ASSEMBLY для Arctic Cat PANTHER 570 (BLACK) (INTERNATIONAL) - 2007 года выпуска
-
№АртикулНазвание
-
10703-930 ARM, LOWER - RIGHT - PLATINUM (INC. 2 AND TWO NO. 4)ARM, LOWER - RIGHT - PLATINUM (INC. 2 AND TWO NO. 4)
-
10703-931 ARM, LOWER - LEFT - PLATINUM (INC. 2 AND TWO NO. 4)ARM, LOWER - LEFT - PLATINUM (INC. 2 AND TWO NO. 4)
-
20603-158 ...BEARING...BEARING
-
30703-932 ARM, UPPER - PLATINUM (INC. FOUR NO. 4)ARM, UPPER - PLATINUM (INC. FOUR NO. 4)
-
40603-083 ...BEARING...BEARING
-
50623-509 SCREW, CAPSCREW, CAP
-
60623-664 WASHERWASHER
-
71603-244 AXLE, POWDER METALAXLE, POWDER METAL
-
80603-692 TUBE, AXLETUBE, AXLE
-
98047-486 NUT, LOCKNUT, LOCK
-
100623-508 SCREW, CAPSCREW, CAP
-
110623-663 WASHERWASHER
-
121603-397 AXLE, NON-SERRATEDAXLE, NON-SERRATED
-
130603-693 TUBE, AXLETUBE, AXLE
-
148047-546 NUT, LOCKNUT, LOCK
-
150603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
168026-234 SCREW, CAPSCREW, CAP
