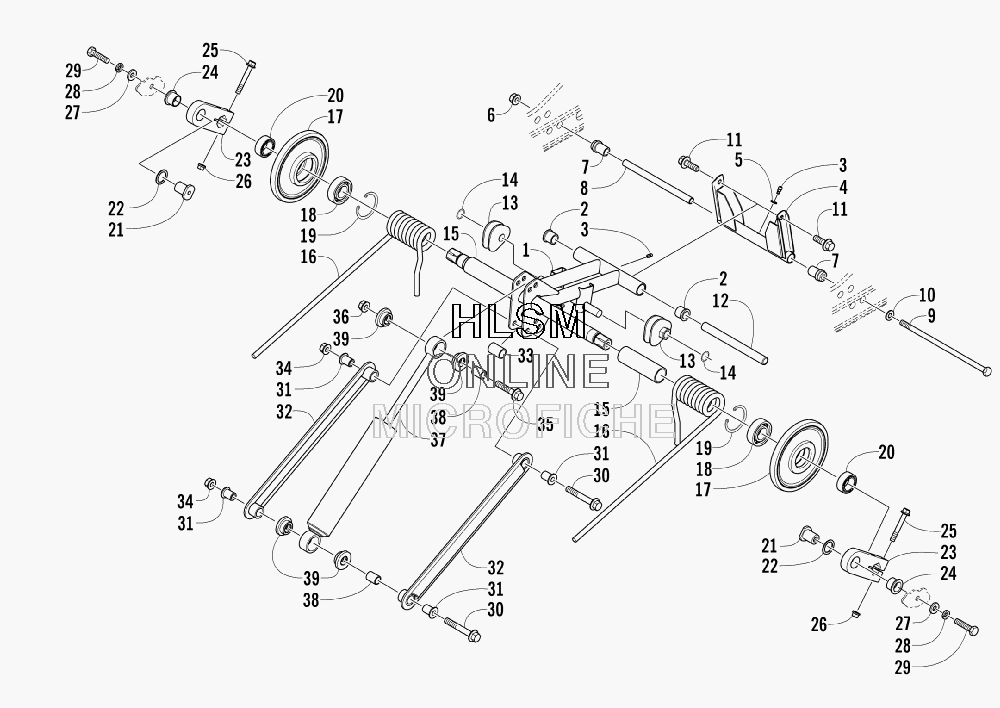

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat PANTHER 660 TOURING - 2007 года выпуска
-
№АртикулНазвание
-
11704-508 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 ...BUSHING...BUSHING
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
41704-019 ARM, REAR (INC. ONE NO. 3 AND 5)ARM, REAR (INC. ONE NO. 3 AND 5)
-
51623-011 ...WASHER, GREASE FITTING...WASHER, GREASE FITTING
-
68047-490 NUT, LOCKNUT, LOCK
-
72604-664 BUSHING, REAR ARMBUSHING, REAR ARM
-
82604-663 AXLE, INNERAXLE, INNER
-
91623-037 SCREW, CAPSCREW, CAP
-
108050-272 WASHERWASHER
-
111623-503 SCREW, CAPSCREW, CAP
-
121604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
131604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
131604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
140623-138 RING, RETAINERRING, RETAINER
-
150114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
161704-146 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
161704-147 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
172604-699 WHEEL, IDLER (INC. 18-19)WHEEL, IDLER (INC. 18-19)
-
180107-598 ...BEARING...BEARING
-
190123-798 ...RING, RETAINING...RING, RETAINING
-
201604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
213604-158 AXLE, POWDER METALAXLE, POWDER METAL
-
221604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
231704-522 ARM, PIVOT IDLER (INC. 24-26)ARM, PIVOT IDLER (INC. 24-26)
-
243604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
258020-138 ...SCREW, CAP...SCREW, CAP
-
268047-426 ...NUT, LOCK...NUT, LOCK
-
270623-044 WASHERWASHER
-
288051-277 WASHER, LOCKWASHER, LOCK
-
298002-224 SCREW, CAPSCREW, CAP
-
300623-793 SCREW, CAPSCREW, CAP
-
311604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
320704-928 LINK, INNER CARRIAGELINK, INNER CARRIAGE
-
330704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
348047-486 NUT, LOCKNUT, LOCK
-
358020-226 SCREW, CAPSCREW, CAP
-
368041-486 NUT, LOCKNUT, LOCK
-
372604-637 SHOCK ABSORBER - REAR ARM (INC. 38-39)SHOCK ABSORBER - REAR ARM (INC. 38-39)
-
372604-200 SHOCK ABSORBER - REAR ARM (INC. 38-39) (INTERNATIONAL)SHOCK ABSORBER - REAR ARM (INC. 38-39) (INTERNATIONAL)
-
381604-185 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
390604-310 ...BUSHING, SHOCK...BUSHING, SHOCK
