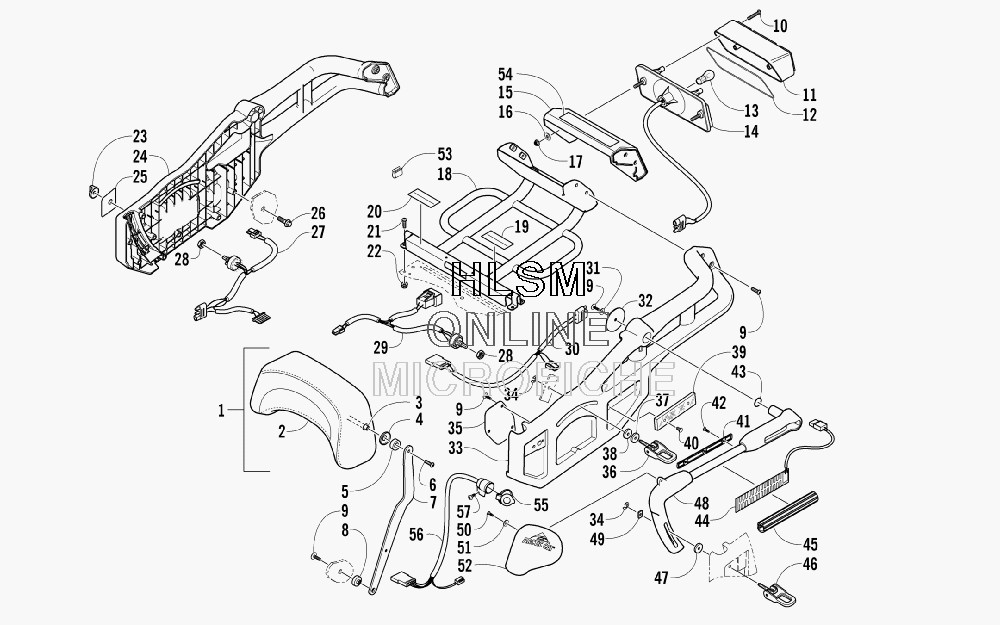

BACKREST- RACK- AND TAILLIGHT ASSEMBLY для Arctic Cat T660 TURBO TOURING (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13706-601 BACKREST W/COVER (INC. 2-3)BACKREST W/COVER (INC. 2-3)
-
23706-600 ...COVER, BACKREST...COVER, BACKREST
-
30114-163 ...AXLE, BACKREST...AXLE, BACKREST
-
40723-003 WASHER, CUPWASHER, CUP
-
50616-547 BLOCK, TENSION - BACKRESTBLOCK, TENSION - BACKREST
-
61623-629 SCREW, MACHINESCREW, MACHINE
-
72706-126 ARM, ADJUSTER - BACKREST - RIGHTARM, ADJUSTER - BACKREST - RIGHT
-
72706-127 ARM, ADJUSTER - BACKREST - LEFTARM, ADJUSTER - BACKREST - LEFT
-
81606-903 SPACER, BACKREST ADJUSTERSPACER, BACKREST ADJUSTER
-
91623-628 SCREW, MACHINESCREW, MACHINE
-
100609-093 SCREW, RETAININGSCREW, RETAINING
-
110609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
120609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
130109-460 BULB, STOP/TAILLIGHTBULB, STOP/TAILLIGHT
-
140609-091 HOUSING, TAILLIGHT W/SOCKETHOUSING, TAILLIGHT W/SOCKET
-
151606-689 COVER, TAILLIGHTCOVER, TAILLIGHT
-
168050-212 WASHERWASHER
-
170623-038 NUT W/WASHERNUT W/WASHER
-
181706-230 BRACKET, MOUNTING - RACK/TAILLIGHTBRACKET, MOUNTING - RACK/TAILLIGHT
-
194611-043 DECAL, WARNING - LATCH/PAYLOAD (FRENCH)DECAL, WARNING - LATCH/PAYLOAD (FRENCH)
-
204611-042 DECAL, WARNING - LATCH/PAYLOAD (ENGLISH)DECAL, WARNING - LATCH/PAYLOAD (ENGLISH)
-
218017-580 SCREW, MACHINESCREW, MACHINE
-
228047-366 NUT, LOCKNUT, LOCK
-
230609-772 KNOB, SWITCHKNOB, SWITCH
-
243706-082 BRACKET, BACKREST/RACK - RIGHTBRACKET, BACKREST/RACK - RIGHT
-
256611-982 DECAL, HANDWARMER SWITCH - RIGHTDECAL, HANDWARMER SWITCH - RIGHT
-
268020-041 SCREW, CAPSCREW, CAP
-
271686-242 HARNESS, HANDWARMER - PASSENGER - RIGHT (INC. ONE NO. 28)HARNESS, HANDWARMER - PASSENGER - RIGHT (INC. ONE NO. 28)
-
301686-243 HARNESS, HANDWARMER - PASSENGER - LEFTHARNESS, HANDWARMER - PASSENGER - LEFT
-
318050-217 WASHERWASHER
-
322706-128 RETAINER, HANDHOLDRETAINER, HANDHOLD
-
331606-683 BRACKET, BACKREST/RACK - LEFTBRACKET, BACKREST/RACK - LEFT
-
340623-826 E-RINGE-RING
-
352706-129 RETAINER, HANDHOLD - PASSENGERRETAINER, HANDHOLD - PASSENGER
-
361606-819 LEVER, QUICK-RELEASE - BACKRESTLEVER, QUICK-RELEASE - BACKREST
-
370623-842 WASHERWASHER
-
380623-838 WASHER, FRICTIONWASHER, FRICTION
-
390606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
400623-269 CLIP, RETAININGCLIP, RETAINING
-
411606-772 RETAINER, HANDGRIP - PASSENGERRETAINER, HANDGRIP - PASSENGER
-
420623-727 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
430670-183 O-RINGO-RING
-
440609-732 ELEMENT, HANDWARMER - PASSENGERELEMENT, HANDWARMER - PASSENGER
-
451606-771 HANDGRIP, PASSENGER HANDHOLDHANDGRIP, PASSENGER HANDHOLD
-
461606-688 LEVER, QUICK-RELEASE - HANDHOLDLEVER, QUICK-RELEASE - HANDHOLD
-
470623-837 WASHER, FRICTIONWASHER, FRICTION
-
481606-684 HANDHOLD, PASSENGER - RIGHTHANDHOLD, PASSENGER - RIGHT
-
481606-685 HANDHOLD, PASSENGER - LEFTHANDHOLD, PASSENGER - LEFT
-
490623-850 T-NUTT-NUT
-
500623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
510123-802 WASHERWASHER
-
521606-238 DEFLECTOR, WIND - RIGHTDEFLECTOR, WIND - RIGHT
-
521606-239 DEFLECTOR, WIND - LEFTDEFLECTOR, WIND - LEFT
-
530123-987 CLIP, RETAININGCLIP, RETAINING
-
570623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
