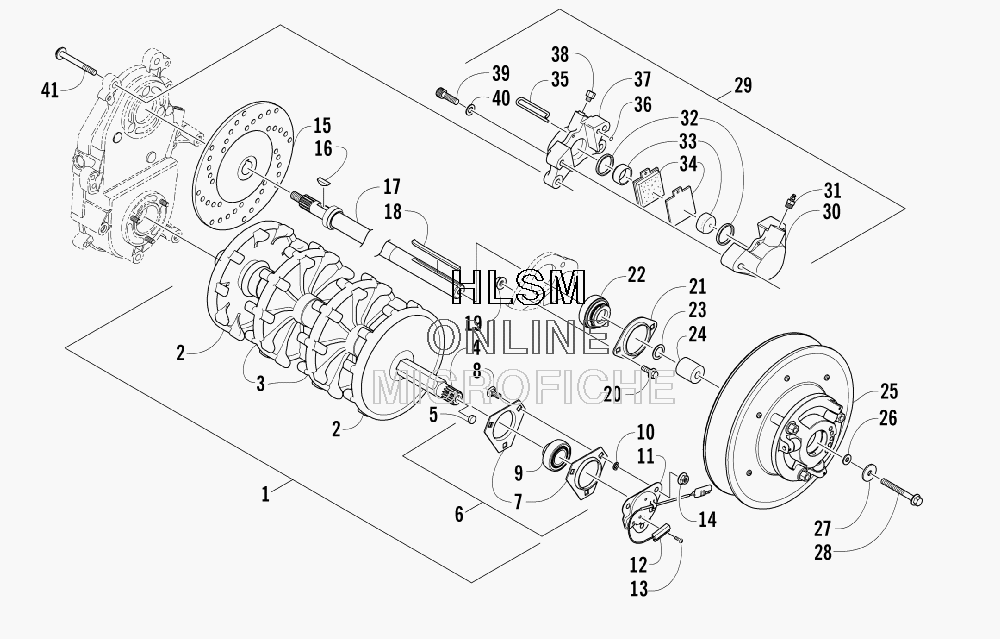

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat T660 TURBO TOURING (GREEN INTERNATIONAL) - 2007 года выпуска
-
№АртикулНазвание
-
10728-117 TRACK DRIVE ASSEMBLY (INC. 2-10)TRACK DRIVE ASSEMBLY (INC. 2-10)
-
21602-203 ...SPROCKET, DRIVE - OUTER...SPROCKET, DRIVE - OUTER
-
31602-507 ...SPROCKET, DRIVE - INNER...SPROCKET, DRIVE - INNER
-
41602-585 ...DRIVESHAFT...DRIVESHAFT
-
50630-167 ...MAGNET, DISC...MAGNET, DISC
-
60702-567 ...PLATE, FLANGE - BEARING ASSEMBLY (INC. 7-10)...PLATE, FLANGE - BEARING ASSEMBLY (INC. 7-10)
-
70602-198 ......PLATE, FLANGE......PLATE, FLANGE
-
88011-130 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
91602-374 ......BEARING, 1 IN.......BEARING, 1 IN.
-
100623-810 ......RING, SOLDER......RING, SOLDER
-
113606-244 BRACKET, SENSORBRACKET, SENSOR
-
120630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
130623-462 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
148047-426 NUT, LOCKNUT, LOCK
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-562 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
198047-486 NUT, LOCKNUT, LOCK
-
208020-222 SCREW, CAPSCREW, CAP
-
212602-039 PLATE, FLANGEPLATE, FLANGE
-
221602-983 BEARING, 1 IN. W/SLEEVEBEARING, 1 IN. W/SLEEVE
-
230623-118 WASHER,FLAT-1.00 X1.43 X.030WASHER,FLAT-1.00 X1.43 X.030
-
230623-119 WASHER,FLAT-1.00 X1.43 X.075WASHER,FLAT-1.00 X1.43 X.075
-
240648-769 STUB, SHAFTSTUB, SHAFT
-
250726-229 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260123-053 WASHERWASHER
-
270123-019 WASHERWASHER
-
288020-136 SCREW, CAPSCREW, CAP
-
290602-829 CALIPER, BRAKE - ASSEMBLY (INC. 30-40)CALIPER, BRAKE - ASSEMBLY (INC. 30-40)
-
310602-707 ...SCREW, BLEED - ASSEMBLY...SCREW, BLEED - ASSEMBLY
-
320602-583 ...O-RING...O-RING
-
330602-708 ...PISTON...PISTON
-
340702-229 ...PAD, BRAKE - SET (INC. 35)...PAD, BRAKE - SET (INC. 35)
-
350602-706 ......PIN, RETAINING......PIN, RETAINING
-
360602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
380602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
398005-677 ...SCREW, CAP...SCREW, CAP
-
408050-272 ...WASHER...WASHER
-
411623-558 SCREW, CAPSCREW, CAP
