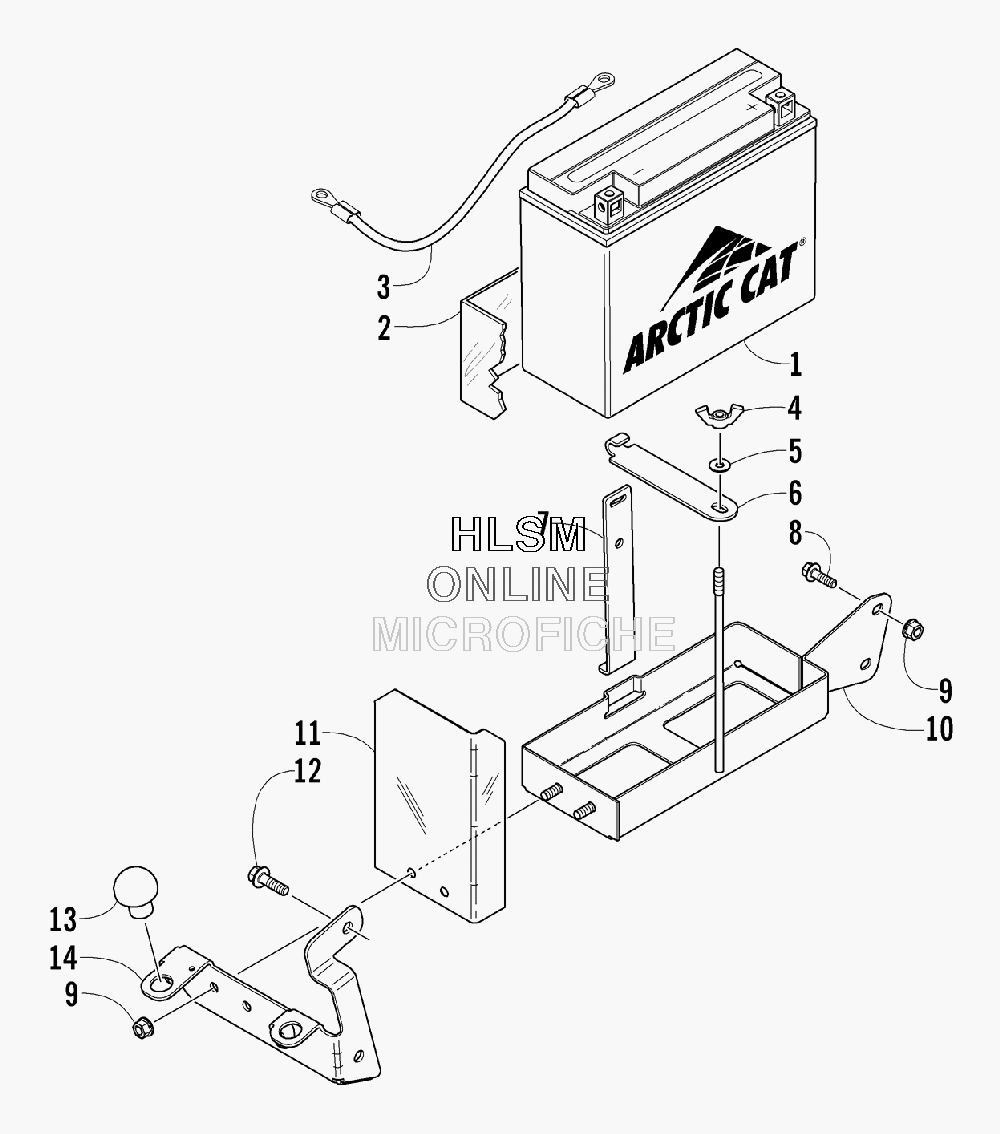

BATTERY ASSEMBLY для Arctic Cat T660 TURBO TOURING (GREEN LE) - 2007 года выпуска
-
№АртикулНазвание
-
10745-230 BATTERY (INC. 2)BATTERY (INC. 2)
-
20645-082 ...WRAP, HEAT - BATTERY...WRAP, HEAT - BATTERY
-
30645-476 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
40623-325 NUT, WINGNUT, WING
-
58050-217 WASHERWASHER
-
60645-243 STRAP, BATTERY HOLD-DOWN - TOPSTRAP, BATTERY HOLD-DOWN - TOP
-
70645-311 STRAP, BATTERY HOLD-DOWN - SIDESTRAP, BATTERY HOLD-DOWN - SIDE
-
88020-040 SCREW, CAPSCREW, CAP
-
98047-366 NUT, LOCKNUT, LOCK
-
100745-213 TRAY, BATTERYTRAY, BATTERY
-
110645-437 SHIELD, HEATSHIELD, HEAT
-
128020-130 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130612-111 BUMPER, RUBBERBUMPER, RUBBER
-
140745-214 BRACKET, MOUNTING - BATTERY TRAYBRACKET, MOUNTING - BATTERY TRAY
