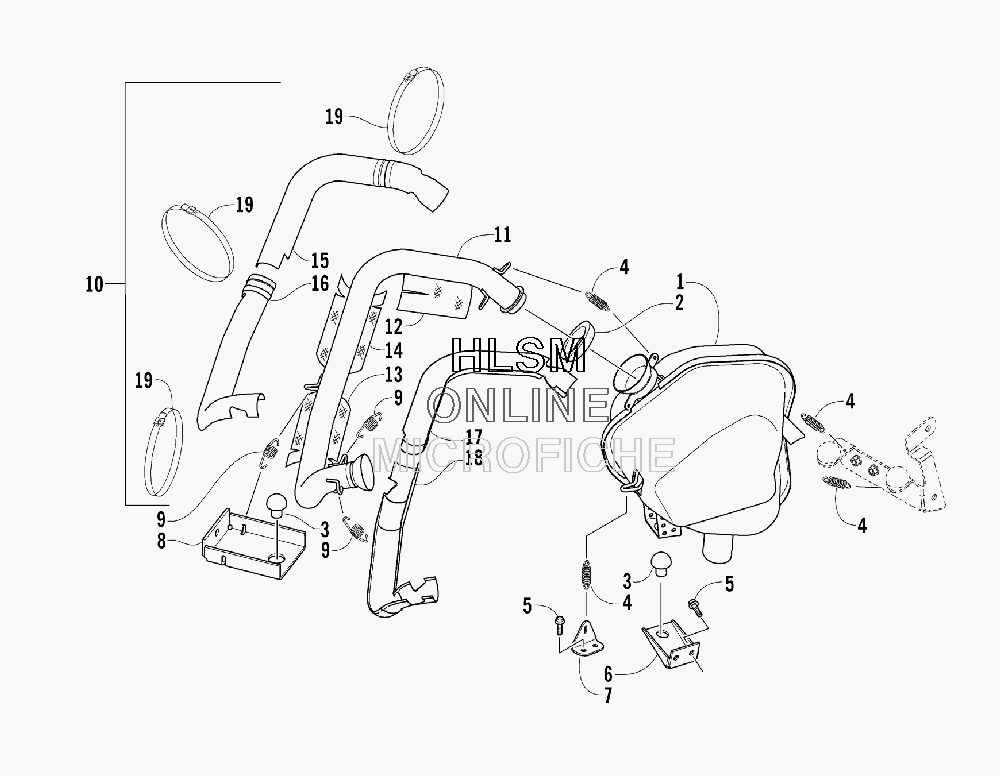

EXHAUST ASSEMBLY для Arctic Cat T660 TURBO TRAIL (GREEN LE) - 2007 года выпуска
-
№АртикулНазвание
-
11712-171 RESONATORRESONATOR
-
21612-323 GASKET, EXHAUSTGASKET, EXHAUST
-
30612-111 BUMPER, RUBBERBUMPER, RUBBER
-
40612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
51623-544 SCREW, CAPSCREW, CAP
-
61712-038 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
71612-763 BRACKET, SPRING RETAININGBRACKET, SPRING RETAINING
-
81712-046 BRACKET, MOUNTING - EXHAUST PIPEBRACKET, MOUNTING - EXHAUST PIPE
-
90612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
101712-048 PIPE, EXHAUST - ASSEMBLY (INC. 11-19)PIPE, EXHAUST - ASSEMBLY (INC. 11-19)
-
111712-006 ...PIPE, EXHAUST...PIPE, EXHAUST
-
121612-818 ...PACKING - RIGHT...PACKING - RIGHT
-
131612-819 ...PACKING - LEFT...PACKING - LEFT
-
141612-820 ...PACKING - CENTER...PACKING - CENTER
-
151612-768 ...COVER, EXHAUST PIPE - UPPER RIGHT...COVER, EXHAUST PIPE - UPPER RIGHT
-
161612-769 ...COVER, EXHAUST PIPE - UPPER LEFT...COVER, EXHAUST PIPE - UPPER LEFT
-
171612-770 ...COVER, EXHAUST PIPE - LOWER RIGHT...COVER, EXHAUST PIPE - LOWER RIGHT
-
181612-771 ...COVER, EXHAUST PIPE - LOWER LEFT...COVER, EXHAUST PIPE - LOWER LEFT
-
190423-524 ...TIE, BAND - 10 IN....TIE, BAND - 10 IN.
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- ALTERNATOR ASSEMBLY
- BATTERY ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CAM CHAIN ASSEMBLY
- CAMSHAFT/VALVE ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKSHAFT ASSEMBLY
- CYLINDER BLOCK/BASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DELIVERY PIPE ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- • EXHAUST ASSEMBLY
- EXHAUST MANIFOLD ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY
- GASKET SET
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- INTAKE MANIFOLD ASSEMBLY
- INTERCOOLER ASSEMBLY
- OIL PAN ASSEMBLY
- RADIO AND WIRING ASSEMBLIES
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- REVERSE SHIFT LEVER ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TIMING CHAIN COVER/OIL PUMP ASSEMBLY
- TUNNEL AND REAR BUMPER
- TURBOCHARGER ASSEMBLY
- WATER PUMP AND THERMOSTAT ASSEMBLIES
