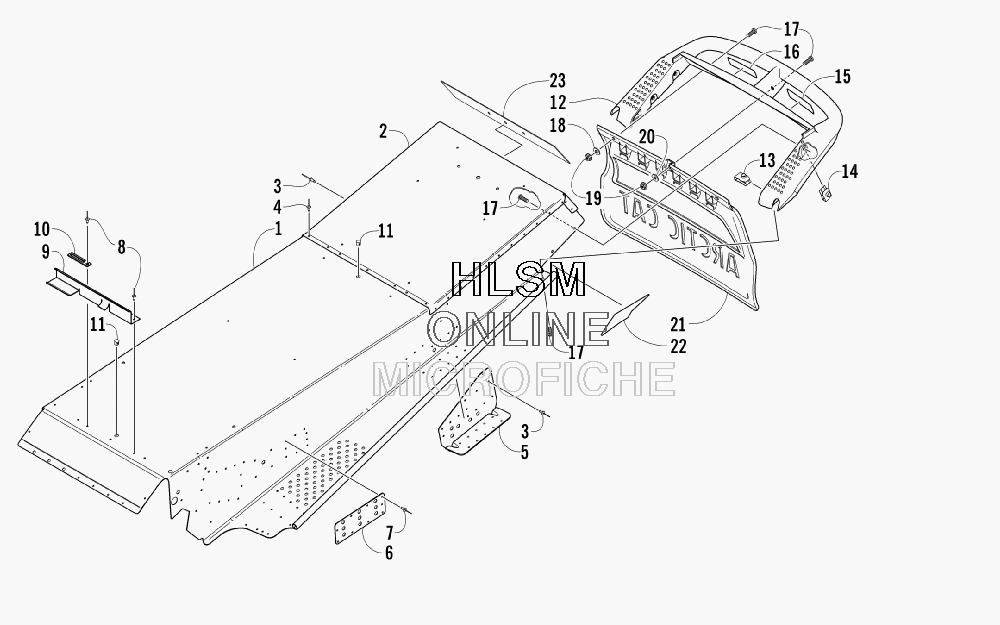

TUNNEL AND REAR BUMPER для Arctic Cat Z 370 (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
11718-536 TUNNEL ASSEMBLY (INC. 2-5)TUNNEL ASSEMBLY (INC. 2-5)
-
23606-179 ...PLATE, END - REAR TUNNEL...PLATE, END - REAR TUNNEL
-
30123-418 ...RIVET, SOLID ALUM-.156 X.312...RIVET, SOLID ALUM-.156 X.312
-
38060-486 ...RIVET, BLIND-DH SS54 ZINC (OPTIONAL)...RIVET, BLIND-DH SS54 ZINC (OPTIONAL)
-
48060-686 ...RIVET,BLIND-DH SS64 ZINC...RIVET,BLIND-DH SS64 ZINC
-
48060-484 ...RIVET, BLIND-DH SS53 ZINC...RIVET, BLIND-DH SS53 ZINC
-
51706-078 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
51706-079 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
62706-111 PLATE, SUSPENSION MOUNTING - FRONTPLATE, SUSPENSION MOUNTING - FRONT
-
70623-072 RIVET, SOLIDRIVET, SOLID
-
88060-486 RIVETRIVET
-
90607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
110623-562 PLUG, HOLEPLUG, HOLE
-
121606-200 BUMPER, REARBUMPER, REAR
-
130623-427 NUT, UNUT, U
-
140623-771 NUT, UNUT, U
-
155611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
165611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
178017-580 SCREW, MACHINESCREW, MACHINE
-
180623-184 WASHERWASHER
-
198047-366 NUT, LOCKNUT, LOCK
-
208050-217 WASHERWASHER
-
211606-202 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
226611-688 DECAL, REFLECTOR - RIGHT - REARDECAL, REFLECTOR - RIGHT - REAR
-
226611-689 DECAL, REFLECTOR - LEFT - REARDECAL, REFLECTOR - LEFT - REAR
-
236611-644 DECAL, TUNNEL - REARDECAL, TUNNEL - REAR
