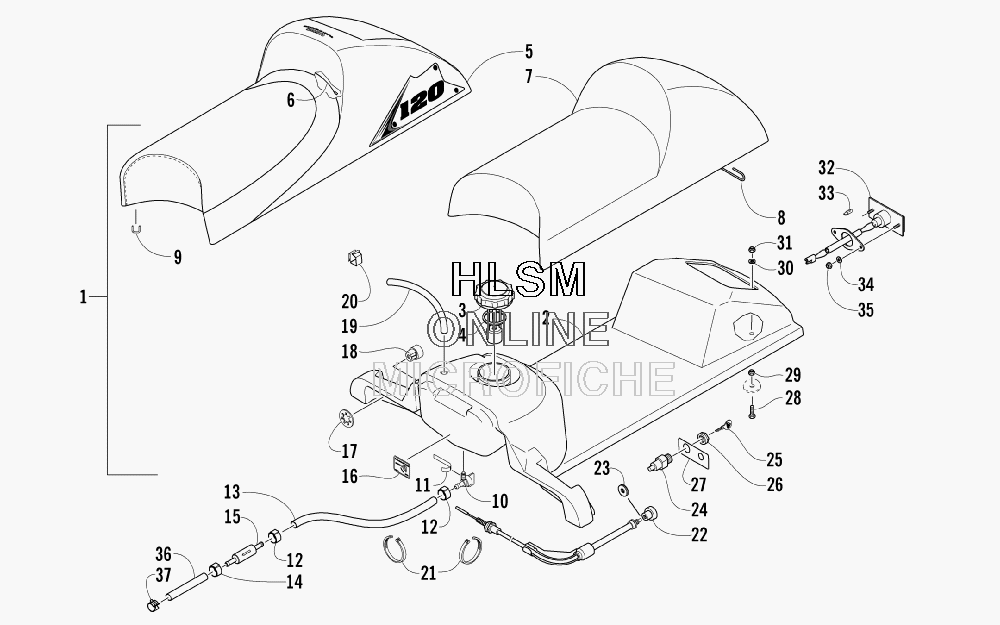

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat AC 120 (GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
12718-433 COMPLETE SEAT ASSEMBLY (INC. 2-9) (GREEN)COMPLETE SEAT ASSEMBLY (INC. 2-9) (GREEN)
-
12718-434 COMPLETE SEAT ASSEMBLY (INC. 2-9) (PINK)COMPLETE SEAT ASSEMBLY (INC. 2-9) (PINK)
-
21670-969 ...TANK, GAS/SEAT-BASE...TANK, GAS/SEAT-BASE
-
31670-694 ...CAP, GAS TANK W/GAUGE (INC. 4)...CAP, GAS TANK W/GAUGE (INC. 4)
-
40109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
53706-762 ...COVER, SEAT (INC. 6) (GREEN)...COVER, SEAT (INC. 6) (GREEN)
-
53706-855 ...COVER, SEAT (INC. 6) (PINK)...COVER, SEAT (INC. 6) (PINK)
-
65606-156 ......WIRE, SEAT......WIRE, SEAT
-
71706-017 ...FOAM, SEAT...FOAM, SEAT
-
82606-942 ...WIRE, SEAT...WIRE, SEAT
-
90624-528 ...STAPLE, SEAT COVER...STAPLE, SEAT COVER
-
100676-017 VALVE, SHUT-OFF - GAS TANKVALVE, SHUT-OFF - GAS TANK
-
110670-289 TAPE, TEFLONTAPE, TEFLON
-
120610-419 CLAMP, HOSECLAMP, HOSE
-
130410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
140610-415 CLAMP, HOSECLAMP, HOSE
-
150510-335 FILTER, FUELFILTER, FUEL
-
163611-856 DECAL, SHUT-OFF VALVEDECAL, SHUT-OFF VALVE
-
170123-579 NUT, PUSHNUT, PUSH
-
180116-469 BUSHING, RECOIL STARTERBUSHING, RECOIL STARTER
-
191670-647 HOSE, VENTHOSE, VENT
-
200123-394 CLIP, CABLECLIP, CABLE
-
210123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
220687-154 CABLE, CHOKE (INC. 23)CABLE, CHOKE (INC. 23)
-
230687-181 ...NUT, CHOKE CABLE...NUT, CHOKE CABLE
-
240109-822 SWITCH, IGNITION (INC. 25-26)SWITCH, IGNITION (INC. 25-26)
-
250116-065 ...KEY...KEY
-
260609-111 ...NUT, RETAINING...NUT, RETAINING
-
274611-767 DECAL, SWITCH/CHOKEDECAL, SWITCH/CHOKE
-
288002-040 SCREW, CAPSCREW, CAP
-
298040-366 NUT, LOCKNUT, LOCK
-
300623-184 WASHERWASHER
-
310123-108 NUT, NYLON CAPNUT, NYLON CAP
-
320609-070 TAILLIGHT ASSEMBLY (INC. 33)TAILLIGHT ASSEMBLY (INC. 33)
-
330230-020 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
348050-157 WASHERWASHER
-
350123-709 NUT W/LOCK WASHERNUT W/LOCK WASHER
-
360610-772 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
370623-373 CLAMP, HOSECLAMP, HOSE
