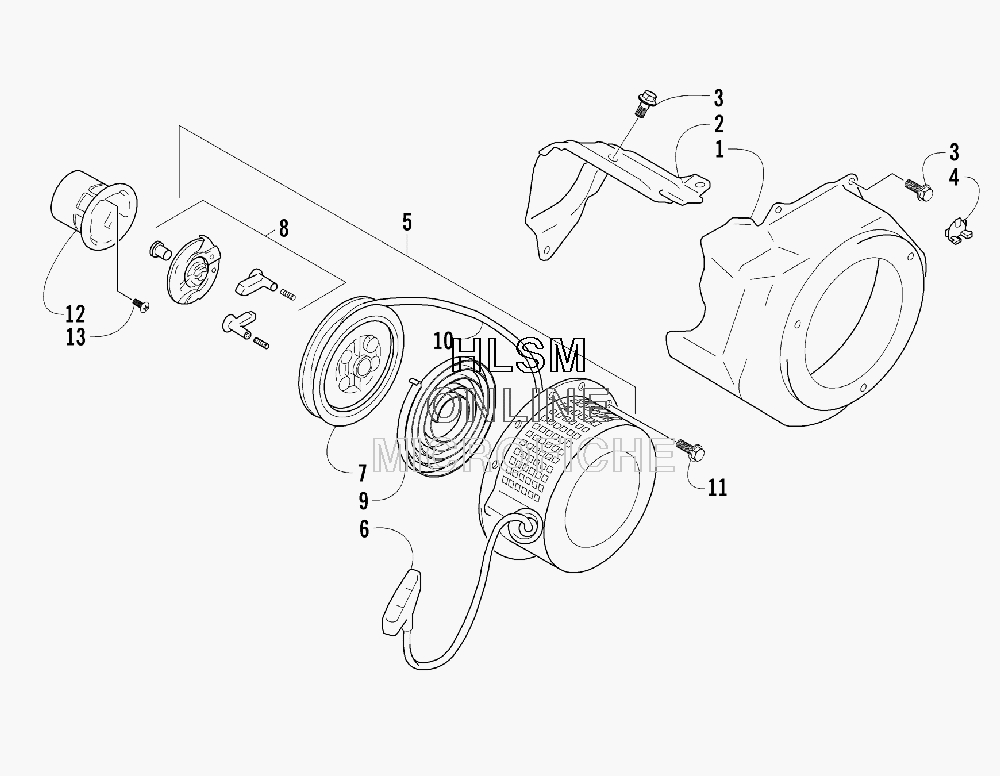

RECOIL STARTER для Arctic Cat AC 120 (PINK) - 2008 года выпуска
-
№АртикулНазвание
-
10694-013 COVER, VENTILATION COWLINGCOVER, VENTILATION COWLING
-
20691-853 COWLING, VENTILATIONCOWLING, VENTILATION
-
30693-241 BOLTBOLT
-
40691-122 PROTECTOR, LEAD WIREPROTECTOR, LEAD WIRE
-
50694-014 STARTER, RECOIL - ASSEMBLY (INC. 6-9)STARTER, RECOIL - ASSEMBLY (INC. 6-9)
-
60693-257 ...GRIP ASSEMBLY...GRIP ASSEMBLY
-
70691-856 ...REEL...REEL
-
80693-256 ...RATCHET SET...RATCHET SET
-
93005-162 ...SPRING, SPIRAL...SPRING, SPIRAL
-
103004-856 ROPEROPE
-
110693-246 BOLTBOLT
-
120691-863 PULLEY, STARTERPULLEY, STARTER
-
133004-423 SCREWSCREW
