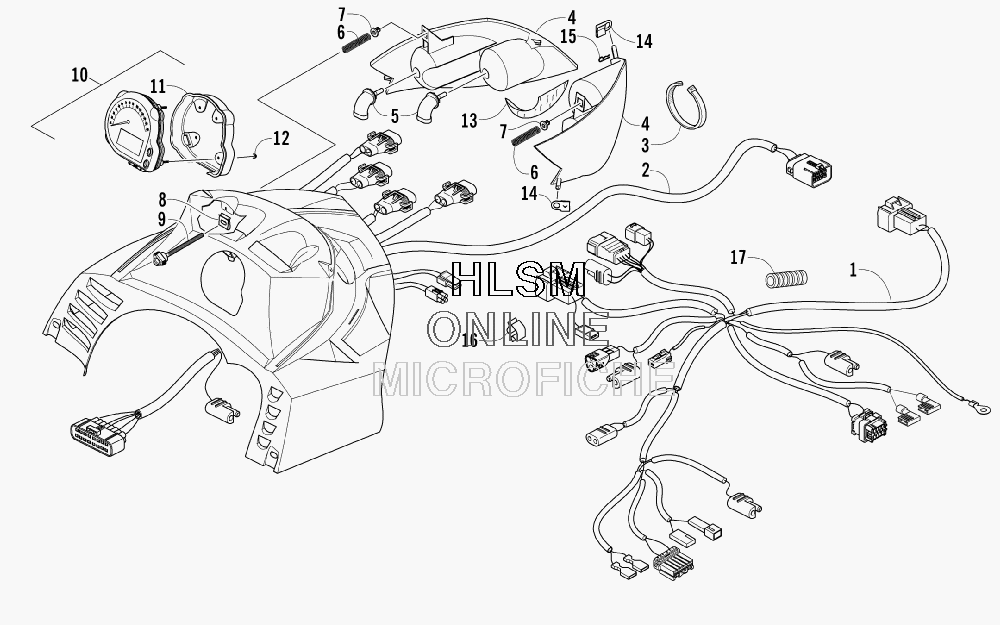

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat BEAR WIDE TRACK TURBO ARTICULATING - 2008 года выпуска
-
№АртикулНазвание
-
11686-251 HARNESS, MAINHARNESS, MAIN
-
21686-244 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
40609-846 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5)
-
40609-847 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5)
-
50609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-189 CLIP, ADJUSTER SCREWCLIP, ADJUSTER SCREW
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-292 TACHOMETER/SPEEDOMETER (INC. 11-12)TACHOMETER/SPEEDOMETER (INC. 11-12)
-
110620-281 ...BRACKET, RETAINING...BRACKET, RETAINING
-
120620-280 ...NUT W/WASHER...NUT W/WASHER
-
133606-370 FOIL, HEADLIGHT - RIGHTFOIL, HEADLIGHT - RIGHT
-
133606-371 FOIL, HEADLIGHT - LEFTFOIL, HEADLIGHT - LEFT
-
141623-202 CLIP, HEADLIGHT - RIGHTCLIP, HEADLIGHT - RIGHT
-
141623-201 CLIP, HEADLIGHT - LEFTCLIP, HEADLIGHT - LEFT
-
151623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
161623-200 CLIP, WIRECLIP, WIRE
-
170619-776 CONDUITCONDUIT
