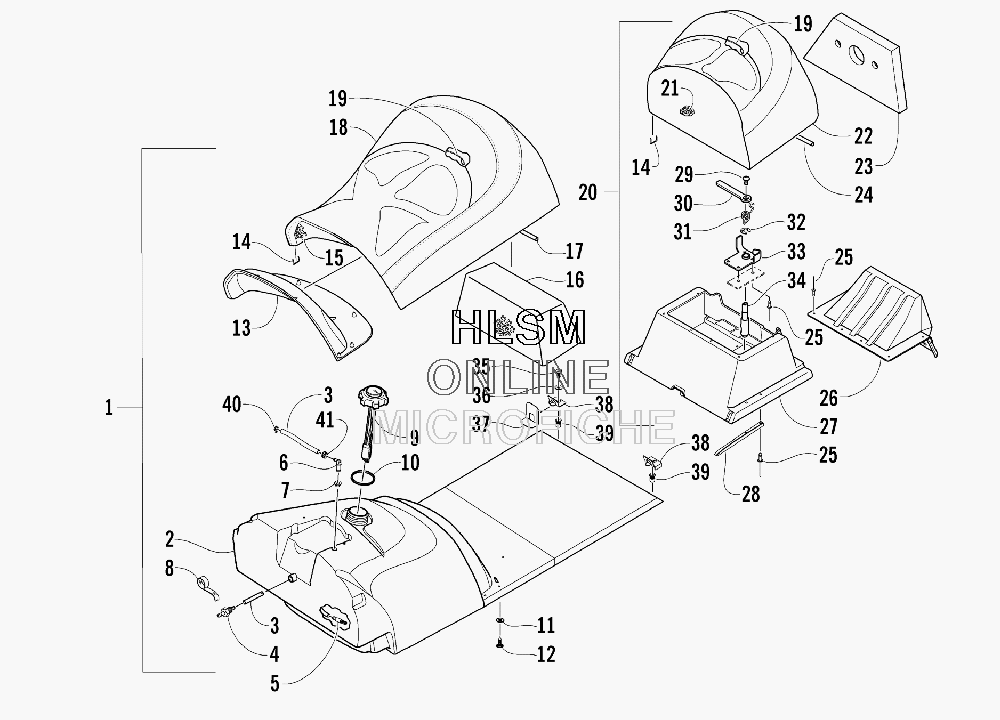

GAS TANK AND SEAT ASSEMBLY для Arctic Cat BEARCAT 570 - 2008 года выпуска

№

Артикул

Название
1

2718-435 COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19)

COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19)

109 400 ₽
1

2718-486 COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19) (CANADIAN/INTERNATIONAL)

COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19) (CANADIAN/INTERNATIONAL)

109 400 ₽
2

0770-803 ...TANK, GAS/SEAT-BASE (INC. 3-10)

...TANK, GAS/SEAT-BASE (INC. 3-10)

108 570 ₽
2

0770-692 ...TANK, GAS/SEAT-BASE (INC. 3-10) (CANADIAN /INTERNATIONAL)

...TANK, GAS/SEAT-BASE (INC. 3-10) (CANADIAN /INTERNATIONAL)

55 530 ₽
3

6101-001 ......HOSE, GASLINE - 100 FT

......HOSE, GASLINE - 100 FT

112 110 ₽
3

6101-009 ......HOSE, GASLINE - 25 FT

......HOSE, GASLINE - 25 FT

70 090 ₽
4

1670-173 ......OUTLET, TANK

......OUTLET, TANK

3 950 ₽
5

0510-358 ......STRAINER, GAS TANK

......STRAINER, GAS TANK

1 030 ₽
6

1670-494 ......VENT, GAS TANK

......VENT, GAS TANK

610 ₽
7

1670-325 ......GROMMET

......GROMMET

440 ₽
8

0670-289 ......TAPE, TEFLON

......TAPE, TEFLON

960 ₽
9

0670-202 ......CAP, GAS TANK (INC. 10)

......CAP, GAS TANK (INC. 10)

12 270 ₽
10

0109-733 .........SEAL, TANK CAP

.........SEAL, TANK CAP

540 ₽
11

8050-217 ...WASHER

...WASHER

20 ₽
12

0623-309 ...SCREW, SELF-TAPPING

...SCREW, SELF-TAPPING

60 ₽
13

1606-612 ...INSERT, SEAT FOAM

...INSERT, SEAT FOAM

4 570 ₽
14

0624-528 ...STAPLE, SEAT COVER

...STAPLE, SEAT COVER

24 120 ₽
15

2706-611 ...FOAM, SEAT CUSHION - FRONT

...FOAM, SEAT CUSHION - FRONT

35 150 ₽
16

2606-133 ...INSERT, SEAT FOAM

...INSERT, SEAT FOAM

4 780 ₽
17

2606-943 ...WIRE, SEAT

...WIRE, SEAT

210 ₽
18

3706-725 ...COVER, SEAT - FRONT (INC. ONE NO. 19)

...COVER, SEAT - FRONT (INC. ONE NO. 19)

40 760 ₽
19

3606-363 ......WIRE, SEAT

......WIRE, SEAT

520 ₽
20

7999-878 COMPLETE SEAT ASSEMBLY - PASSENGER (INC. 14, ONE NO. 19, AND 21-34)

COMPLETE SEAT ASSEMBLY - PASSENGER (INC. 14, ONE NO. 19, AND 21-34)

67 590 ₽
21

3706-312 ...FOAM, SEAT - PASSENGER

...FOAM, SEAT - PASSENGER

15 800 ₽
22

3706-726 ...COVER, SEAT - PASSENGER (INC. ONE NO. 19)

...COVER, SEAT - PASSENGER (INC. ONE NO. 19)

30 150 ₽
23

0617-098 ...FOAM, SEAT-BASE/TAILLIGHT

...FOAM, SEAT-BASE/TAILLIGHT

940 ₽
24

2606-942 ...WIRE, SEAT

...WIRE, SEAT

380 ₽
25

0623-853 ...RIVET

...RIVET

170 ₽
26

1606-191 ...EXTENSION, TOOLBOX

...EXTENSION, TOOLBOX

13 100 ₽
27

3606-238 ...SEAT-BASE - PASSENGER

...SEAT-BASE - PASSENGER

8 310 ₽
28

2606-188 ...BRACKET, HOLD-DOWN - SEAT - RIGHT

...BRACKET, HOLD-DOWN - SEAT - RIGHT

2 910 ₽
28

2606-189 ...BRACKET, HOLD-DOWN - SEAT - LEFT

...BRACKET, HOLD-DOWN - SEAT - LEFT

2 280 ₽
29

8017-397 ...SCREW, MACHINE

...SCREW, MACHINE

40 ₽
30

3606-171 ...LEVER, SEAT LATCH

...LEVER, SEAT LATCH

2 280 ₽
31

0623-610 ...SPRING, LEVER

...SPRING, LEVER

3 110 ₽
32

0602-051 ...E-RING

...E-RING

130 ₽
33

2706-535 ...BRACKET, SEAT LATCH

...BRACKET, SEAT LATCH

3 950 ₽
34

3606-172 ...STUD, LATCH

...STUD, LATCH

2 700 ₽
35

8017-580 SCREW, MACHINE

SCREW, MACHINE

310 ₽
36

8050-222 WASHER

WASHER

110 ₽
37

2606-268 GUARD, SEAT - RIGHT

GUARD, SEAT - RIGHT

860 ₽
37

2606-269 GUARD, SEAT - LEFT

GUARD, SEAT - LEFT

750 ₽
38

2706-134 BRACKET, HOLD-DOWN - RECEIVER - RIGHT

BRACKET, HOLD-DOWN - RECEIVER - RIGHT

2 490 ₽
38

2706-135 BRACKET, HOLD-DOWN - RECEIVER - LEFT

BRACKET, HOLD-DOWN - RECEIVER - LEFT

2 280 ₽
39

0623-582 INSERT

INSERT

480 ₽
40

0623-101 CLIP, ROUTING - SNAP-IN

CLIP, ROUTING - SNAP-IN

830 ₽
41

1623-042 CLAMP, HOSE

CLAMP, HOSE

170 ₽
