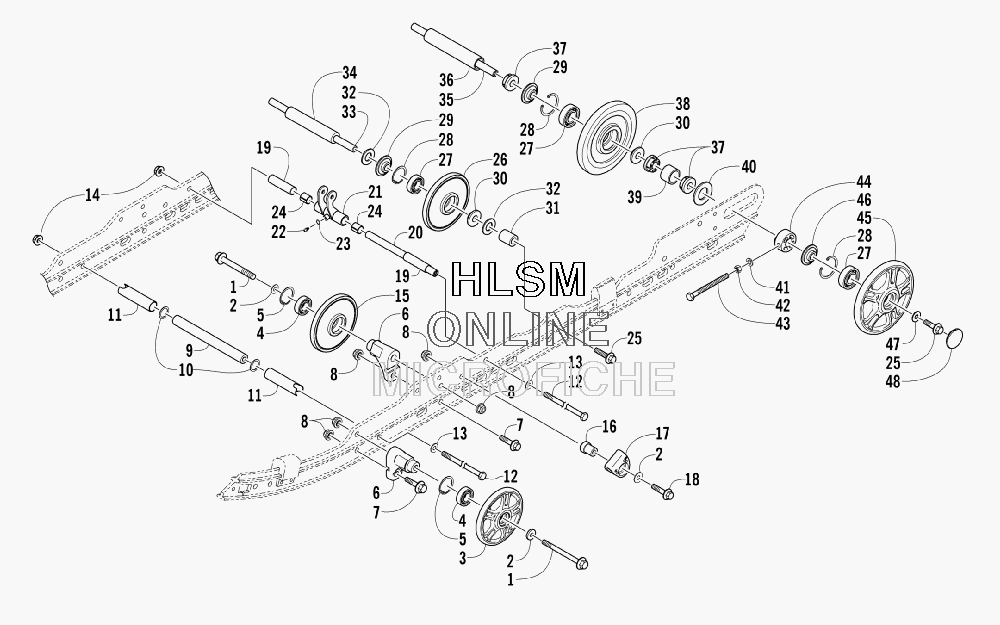

IDLER WHEEL ASSEMBLY для Arctic Cat CROSSFIRE 1000 EFI NIGHTFIRE - 2008 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
28050-282 WASHERWASHER
-
33604-048 WHEEL, IDLER - ORANGE (INC. 4-5)WHEEL, IDLER - ORANGE (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
62604-579 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
78020-224 SCREW, CAPSCREW, CAP
-
88047-486 NUT, LOCKNUT, LOCK
-
91604-792 AXLEAXLE
-
100623-912 WASHERWASHER
-
111604-793 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
121623-037 SCREW, CAPSCREW, CAP
-
138050-272 WASHERWASHER
-
148047-490 NUT, LOCKNUT, LOCK
-
153604-039 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
160604-912 BLOCK, SLIDEBLOCK, SLIDE
-
172604-515 SLIDE, SPRINGSLIDE, SPRING
-
188020-228 SCREW, CAPSCREW, CAP
-
192604-109 SPACERSPACER
-
201604-209 AXLEAXLE
-
210704-994 PIVOT, REAR SHOCK (INC. 22-24)PIVOT, REAR SHOCK (INC. 22-24)
-
221623-010 ...FITTING, GREASE...FITTING, GREASE
-
231623-011 ...WASHER, GREASE FITTING...WASHER, GREASE FITTING
-
240603-083 ...BEARING...BEARING
-
251623-248 SCREW, CAPSCREW, CAP
-
261604-684 WHEEL, IDLER (INC. 27-30)WHEEL, IDLER (INC. 27-30)
-
270107-598 ...BEARING...BEARING
-
280123-798 ...RING, RETAINING...RING, RETAINING
-
291604-772 ...INSERT, WHEEL - INSIDE...INSERT, WHEEL - INSIDE
-
301604-773 ...INSERT, WHEEL - OUTSIDE...INSERT, WHEEL - OUTSIDE
-
311604-213 SPACERSPACER
-
320623-675 WASHERWASHER
-
330604-930 AXLEAXLE
-
341604-214 SPACERSPACER
-
351604-217 AXLE, REARAXLE, REAR
-
360604-144 SPACER, REAR WHEELSPACER, REAR WHEEL
-
370604-968 BUSHING, SPACERBUSHING, SPACER
-
381604-685 WHEEL, IDLER (INC. 27-30)WHEEL, IDLER (INC. 27-30)
-
390604-937 SPACER, REAR WHEELSPACER, REAR WHEEL
-
400623-220 WASHERWASHER
-
418051-277 WASHER, LOCKWASHER, LOCK
-
428042-486 NUTNUT
-
430623-123 SCREW, CAPSCREW, CAP
-
440604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
453604-018 WHEEL, IDLER - ORANGE (INC. 4-5 AND 46)WHEEL, IDLER - ORANGE (INC. 4-5 AND 46)
-
461604-774 ...INSERT, WHEEL...INSERT, WHEEL
-
470123-570 WASHERWASHER
-
480604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
