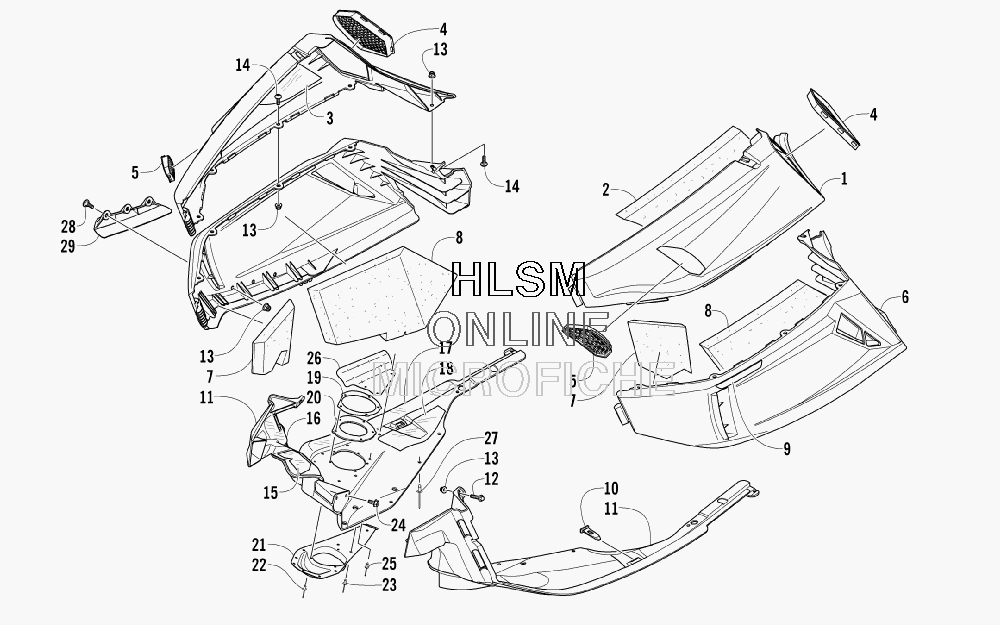

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F1000 EFI NIGHTFIRE SNO PRO - 2008 года выпуска
-
№АртикулНазвание
-
12718-288 PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 2-3)PANEL, SIDE - UPPER - RIGHT W/O DECALS (INC. 2-3)
-
12718-289 PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 2)PANEL, SIDE - UPPER - LEFT W/O DECALS (INC. 2)
-
20617-562 ...FOAM, UPPER SIDE PANEL - RIGHT...FOAM, UPPER SIDE PANEL - RIGHT
-
20617-563 ...FOAM, UPPER SIDE PANEL - LEFT...FOAM, UPPER SIDE PANEL - LEFT
-
34606-799 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
44606-650 VENT, UPPER SIDE PANEL - REAR - RIGHTVENT, UPPER SIDE PANEL - REAR - RIGHT
-
44606-651 VENT, UPPER SIDE PANEL - REAR - LEFTVENT, UPPER SIDE PANEL - REAR - LEFT
-
54606-662 VENT, UPPER SIDE PANEL - RIGHTVENT, UPPER SIDE PANEL - RIGHT
-
54606-663 VENT, UPPER SIDE PANEL - LEFTVENT, UPPER SIDE PANEL - LEFT
-
62718-524 PANEL, SIDE - LOWER - RIGHT W/O DECALS (INC. 7-9)PANEL, SIDE - LOWER - RIGHT W/O DECALS (INC. 7-9)
-
62718-525 PANEL, SIDE - LOWER - LEFT W/O DECALS (INC. 7-9)PANEL, SIDE - LOWER - LEFT W/O DECALS (INC. 7-9)
-
70617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
70617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT...FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
80617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT...FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
80617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT...FOAM, LOWER SIDE PANEL - REAR - LEFT
-
98611-181 ...DECAL, REFLECTOR...DECAL, REFLECTOR
-
104606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
113706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
114706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
128408-635 SCREW, CAPSCREW, CAP
-
138427-602 NUT, LOCKNUT, LOCK
-
148408-620 SCREW, MACHINESCREW, MACHINE
-
154606-796 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
164606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
174606-798 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
184606-797 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
191712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
202612-156 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
211712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
228060-510 RIVET, BLINDRIVET, BLIND
-
230623-778 RIVET, BULBRIVET, BULB
-
240623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
258061-508 RIVETRIVET
-
262612-268 SHIELD, HEATSHIELD, HEAT
-
278061-708 RIVET, BLINDRIVET, BLIND
-
280423-355 SCREW, SHOULDERSCREW, SHOULDER
-
295606-404 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
