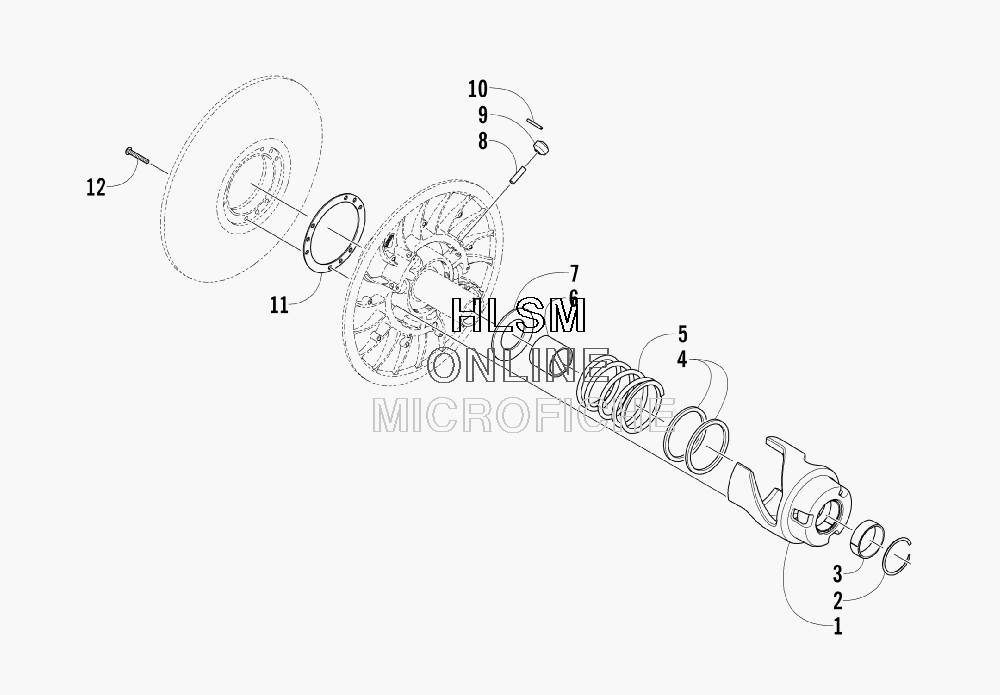

DRIVEN CLUTCH для Arctic Cat JAGUAR Z1 NIGHTFIRE SNO PRO - 2008 года выпуска
-
№АртикулНазвание
-
0726-280 COMPLETE DRIVEN CLUTCH ASSEMBLYCOMPLETE DRIVEN CLUTCH ASSEMBLY
-
10748-687 BRACKET, TORQUE 48?/40...(INC. 2-3)BRACKET, TORQUE 48?/40...(INC. 2-3)
-
10748-662 BRACKET, TORQUE 36...(INC. 2-3) (OVER 5,000 FT ALT.)BRACKET, TORQUE 36...(INC. 2-3) (OVER 5,000 FT ALT.)
-
20648-433 ...RING, SNAP...RING, SNAP
-
30648-009 ...BEARING...BEARING
-
40648-713 SEAT, SPRING - DRIVEN CLUTCHSEAT, SPRING - DRIVEN CLUTCH
-
50648-774 SPRING, DRIVEN CLUTCH - ORANGESPRING, DRIVEN CLUTCH - ORANGE
-
60648-753 SPACERSPACER
-
70648-453 SEAT, SPRINGSEAT, SPRING
-
80648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
90648-139 ROLLER, CAMROLLER, CAM
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-650 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
121623-517 SCREW, MACHINESCREW, MACHINE
