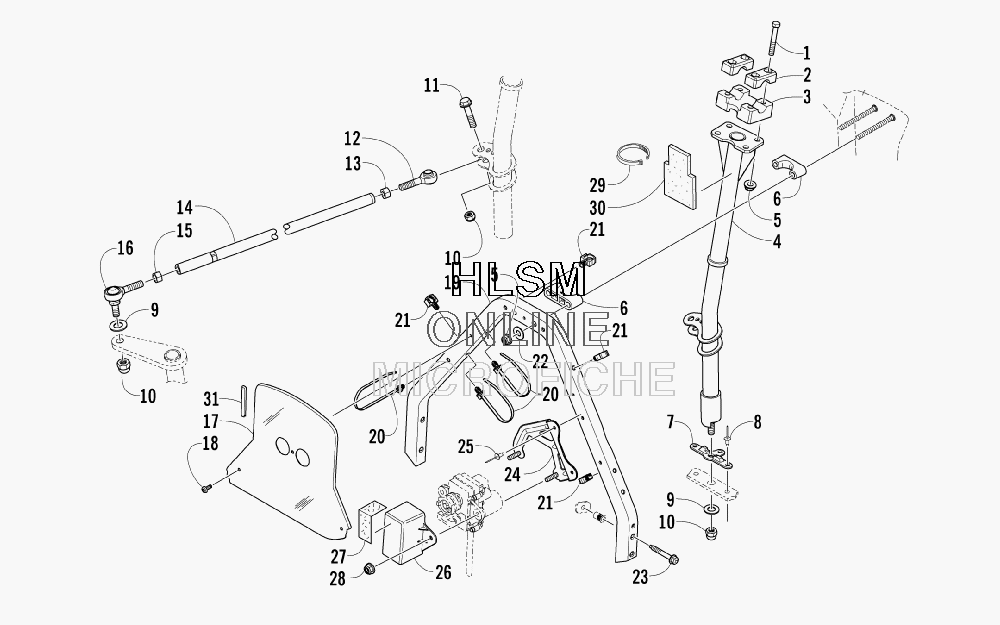

STEERING POST ASSEMBLY для Arctic Cat M6 EFI - 2008 года выпуска
-
№АртикулНазвание
-
18002-138 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
41705-253 POST, STEERINGPOST, STEERING
-
58047-426 NUT, LOCKNUT, LOCK
-
60605-576 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
70605-943 STOP, STEERING POSTSTOP, STEERING POST
-
88060-888 RIVETRIVET
-
90623-044 WASHERWASHER
-
100623-025 NUT, LOCKNUT, LOCK
-
118004-225 SCREW, CAPSCREW, CAP
-
120605-504 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
130623-294 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
140605-856 TUBE, TIE RODTUBE, TIE ROD
-
150123-917 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
160605-511 BALL JOINT, TIE ROD - LEFT-HAND THREADBALL JOINT, TIE ROD - LEFT-HAND THREAD
-
174606-756 PANEL, CLOSE-OUTPANEL, CLOSE-OUT
-
181623-353 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191705-244 SUPPORT, STEERINGSUPPORT, STEERING
-
200623-677 CABLE TIE, PUSH-MOUNTCABLE TIE, PUSH-MOUNT
-
211623-406 CLIP, RETAININGCLIP, RETAINING
-
228050-252 WASHERWASHER
-
231623-482 SCREW, CAPSCREW, CAP
-
242706-814 PLATE, MOUNTING - SERVOMOTORPLATE, MOUNTING - SERVOMOTOR
-
258060-686 RIVETRIVET
-
262606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
273606-814 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
288047-366 NUT, LOCKNUT, LOCK
-
290123-788 CABLE TIECABLE TIE
-
300617-538 FOAM, STEERING POSTFOAM, STEERING POST
-
310706-371 TRIMTRIM
