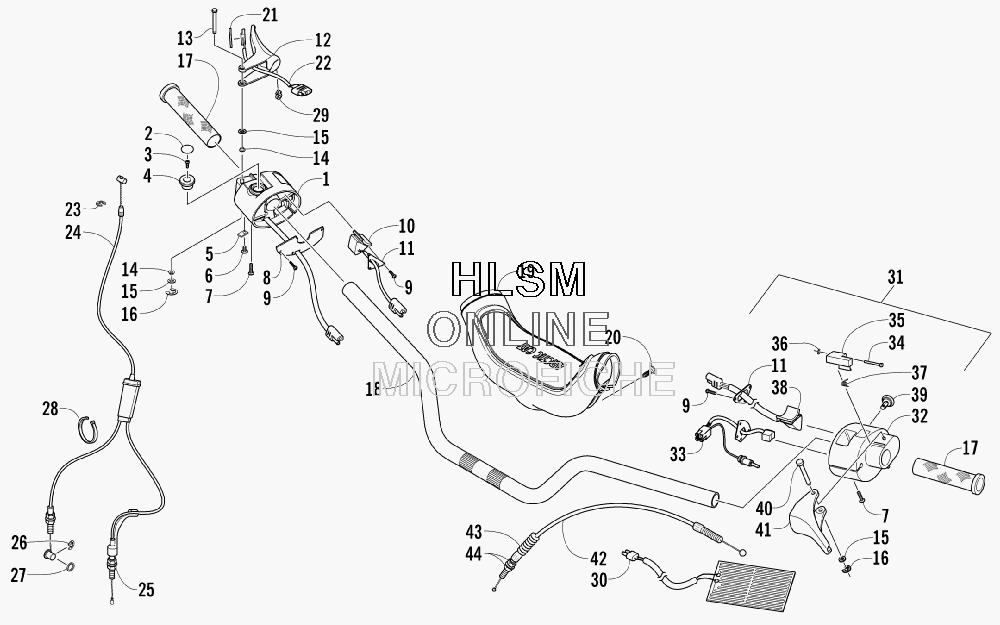

HANDLEBAR AND CONTROLS для Arctic Cat PANTHER 370 CANADIAN - 2008 года выпуска
-
№АртикулНазвание
-
10609-387 CONTROL, THROTTLE (INC. 2-6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)CONTROL, THROTTLE (INC. 2-6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)
-
20609-283 ...DECAL, MARK PLATE...DECAL, MARK PLATE
-
30623-215 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
40609-282 ...KNOB, EMERGENCY STOP...KNOB, EMERGENCY STOP
-
50609-319 ...CLAMP, HARNESS - SINGLE...CLAMP, HARNESS - SINGLE
-
60609-321 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
70609-085 ...SCREW, MACHINE...SCREW, MACHINE
-
80609-316 ...COVER, THROTTLE SWITCH...COVER, THROTTLE SWITCH
-
90609-312 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
100609-384 ...CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)...CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)
-
110609-378 ......PLATE, COVER......PLATE, COVER
-
120609-257 LEVER, THROTTLELEVER, THROTTLE
-
130609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
140609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180705-361 HANDLEBARHANDLEBAR
-
190616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
200623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210617-248 PAD, INSULATORPAD, INSULATOR
-
220609-685 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230123-231 RING, RETAININGRING, RETAINING
-
240687-084 CABLE, THROTTLE (INC. 25)CABLE, THROTTLE (INC. 25)
-
250623-464 ...NUT, LOCKING - THROTTLE CABLE...NUT, LOCKING - THROTTLE CABLE
-
260124-057 E-RINGE-RING
-
270124-056 WASHERWASHER
-
280123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
290623-262 CLIP, WIRECLIP, WIRE
-
300609-684 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
310609-393 SWITCH, BRAKE - ASSEMBLY (INC. SEVEN NO. 9, ONE NO. 11, AND 32-39)SWITCH, BRAKE - ASSEMBLY (INC. SEVEN NO. 9, ONE NO. 11, AND 32-39)
-
320609-478 ...HOUSING, BRAKE SWITCH...HOUSING, BRAKE SWITCH
-
330609-452 ...SWITCH, DIMMER - BRAKE...SWITCH, DIMMER - BRAKE
-
340609-050 ...PIN, ACTUATOR...PIN, ACTUATOR
-
350609-314 ...ACTUATOR, BRAKE - PARKING...ACTUATOR, BRAKE - PARKING
-
360609-051 ...RING, RETAINING...RING, RETAINING
-
370609-313 ...SPRING, ACTUATOR...SPRING, ACTUATOR
-
380609-385 ...SWITCH, HANDWARMER ASSEMBLY (ON/OFF) (INC. THREE NO. 9 AND ONE NO. 11)...SWITCH, HANDWARMER ASSEMBLY (ON/OFF) (INC. THREE NO. 9 AND ONE NO. 11)
-
390609-474 ...KNOB, DIMMER SWITCH...KNOB, DIMMER SWITCH
-
400609-315 AXLE, LEVER - BRAKEAXLE, LEVER - BRAKE
-
410609-266 LEVER, BRAKELEVER, BRAKE
-
420687-089 CABLE, BRAKECABLE, BRAKE
-
430109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
440123-406 NUT, FLANGENUT, FLANGE
