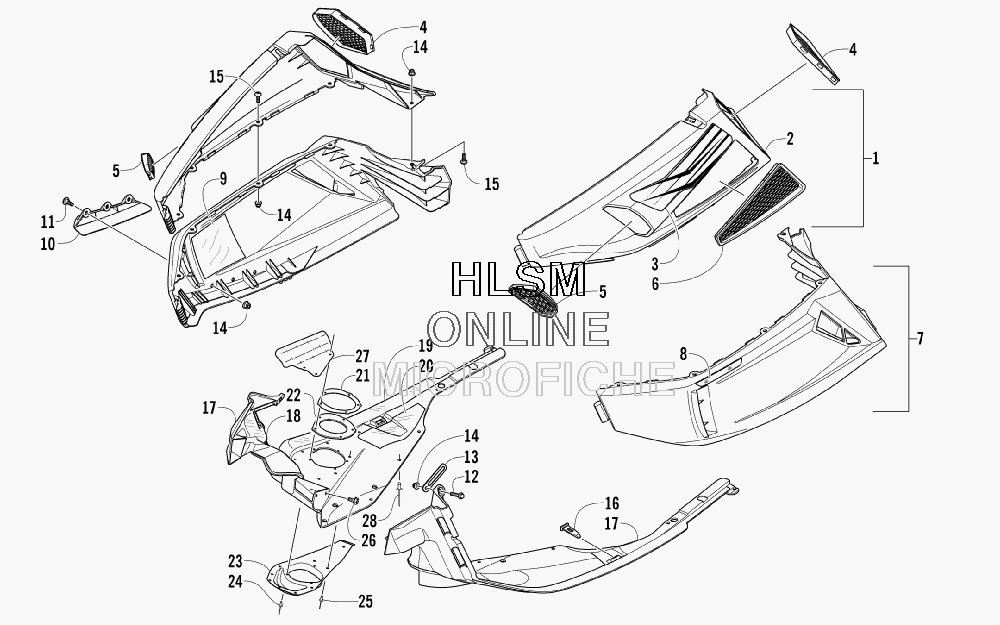

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat T570 - 2008 года выпуска
-
№АртикулНазвание
-
12718-534 PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-3)PANEL, SIDE - UPPER - RIGHT W/DECALS (INC. 2-3)
-
12718-419 PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3)PANEL, SIDE - UPPER - LEFT W/DECALS (INC. 2-3)
-
24606-832 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS...PANEL, SIDE - UPPER - RIGHT W/O DECALS
-
24706-021 ...PANEL, SIDE - UPPER - LEFT W/O DECALS...PANEL, SIDE - UPPER - LEFT W/O DECALS
-
38611-196 ...DECAL, UPPER SIDE PANEL - RIGHT...DECAL, UPPER SIDE PANEL - RIGHT
-
38611-197 ...DECAL, UPPER SIDE PANEL - LEFT...DECAL, UPPER SIDE PANEL - LEFT
-
44606-650 VENT, UPPER SIDE PANEL - REAR - RIGHTVENT, UPPER SIDE PANEL - REAR - RIGHT
-
44606-651 VENT, UPPER SIDE PANEL - REAR - LEFTVENT, UPPER SIDE PANEL - REAR - LEFT
-
54606-662 VENT, UPPER SIDE PANEL - FORWARD - RIGHTVENT, UPPER SIDE PANEL - FORWARD - RIGHT
-
54606-663 VENT, UPPER SIDE PANEL - FORWARD - LEFTVENT, UPPER SIDE PANEL - FORWARD - LEFT
-
65606-185 VENT, SIDE PANEL - CENTER - LEFTVENT, SIDE PANEL - CENTER - LEFT
-
72718-532 PANEL, SIDE - LOWER - RIGHT (INC. 8-9)PANEL, SIDE - LOWER - RIGHT (INC. 8-9)
-
72718-533 PANEL, SIDE - LOWER - LEFT (INC. 8)PANEL, SIDE - LOWER - LEFT (INC. 8)
-
88611-181 ...DECAL, REFLECTOR...DECAL, REFLECTOR
-
95606-548 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
105606-404 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
110423-355 SCREW, SHOULDERSCREW, SHOULDER
-
128408-635 SCREW, CAPSCREW, CAP
-
133002-964 CLAMP, WIRECLAMP, WIRE
-
148427-602 NUT, LOCKNUT, LOCK
-
158408-620 SCREW, MACHINESCREW, MACHINE
-
164606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
173706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
174706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
184606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
194606-798 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
204606-797 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
211712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
222612-287 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
231712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
248060-510 RIVET, BLINDRIVET, BLIND
-
250623-778 RIVET, BULBRIVET, BULB
-
260623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
272612-268 SHIELD, HEATSHIELD, HEAT
-
288061-708 RIVET, BLINDRIVET, BLIND
