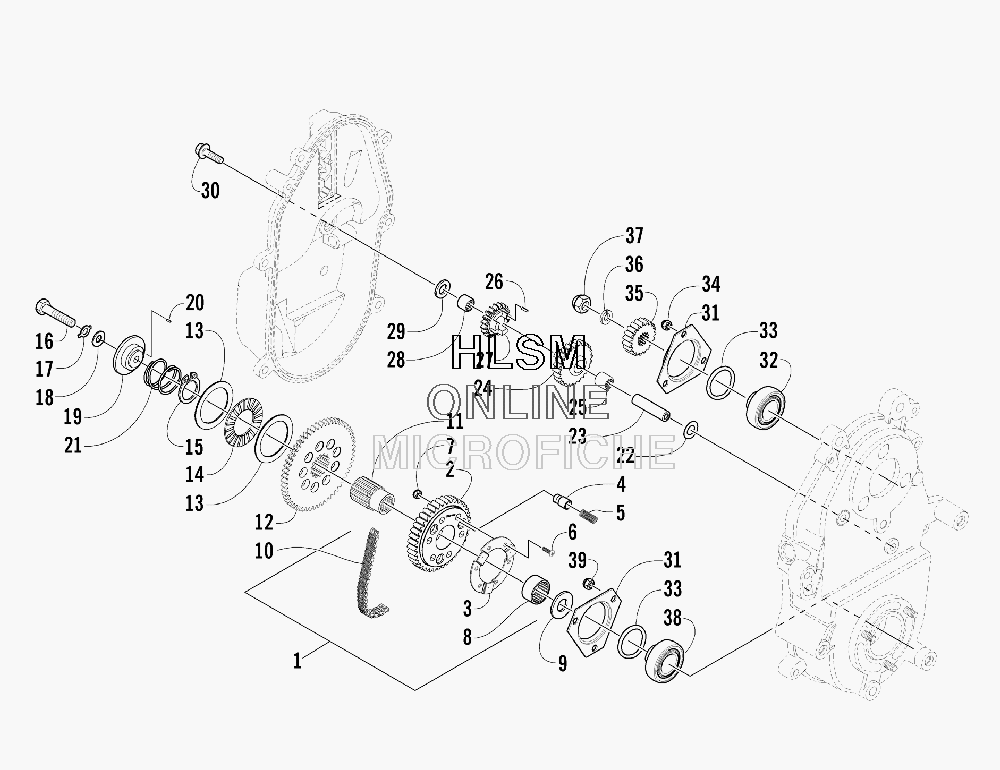

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat T660 TOURING - 2008 года выпуска
-
№АртикулНазвание
-
10702-629 SPROCKET ASSEMBLY - 44T (INC. 2-8)SPROCKET ASSEMBLY - 44T (INC. 2-8)
-
30602-144 ...RETAINER, SPRING...RETAINER, SPRING
-
40602-133 ...PIN, SLIP...PIN, SLIP
-
50602-138 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
60623-182 ...SCREW, CAP...SCREW, CAP
-
70123-430 ...NUT, LOCK...NUT, LOCK
-
80602-016 ...BEARING...BEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-042 CHAIN - 72PCHAIN - 72P
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE - 55T (INC. 13-15)GEAR, REVERSE - 55T (INC. 13-15)
-
130602-023 ...WASHER, THRUST...WASHER, THRUST
-
140602-022 ...BEARING, THRUST...BEARING, THRUST
-
150602-024 ...RING, RETAINING...RING, RETAINING
-
161623-559 SCREW, CAPSCREW, CAP
-
171602-046 WASHER, TAB LOCKWASHER, TAB LOCK
-
188050-272 WASHERWASHER
-
190702-372 RETAINER, SHAFT (INC. 20)RETAINER, SHAFT (INC. 20)
-
208070-153 ...PIN, SPRING...PIN, SPRING
-
210602-028 SPRING, RETURNSPRING, RETURN
-
220602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
230602-094 SHAFT, REVERSESHAFT, REVERSE
-
240702-449 IDLER, REVERSE - ASSEMBLY - 20T (INC. 25)IDLER, REVERSE - ASSEMBLY - 20T (INC. 25)
-
250602-018 ...BEARING...BEARING
-
260602-366 ALIGNER, IDLER - PINALIGNER, IDLER - PIN
-
270702-366 IDLER, REVERSE - ASSEMBLY - 19T (INC. 28)IDLER, REVERSE - ASSEMBLY - 19T (INC. 28)
-
281602-045 ...BEARING...BEARING
-
291602-044 WASHER, THRUSTWASHER, THRUST
-
308020-130 SCREW, CAPSCREW, CAP
-
311602-521 PLATE, FLANGEPLATE, FLANGE
-
321602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
330107-003 O-RINGO-RING
-
348041-426 NUT, LOCKNUT, LOCK
-
350602-445 SPROCKET - 18TSPROCKET - 18T
-
360623-231 WASHER, SPRINGWASHER, SPRING
-
370623-465 NUT, LOCKNUT, LOCK
-
381602-051 BEARING, 1 IN.BEARING, 1 IN.
-
398040-426 NUT, LOCKNUT, LOCK
