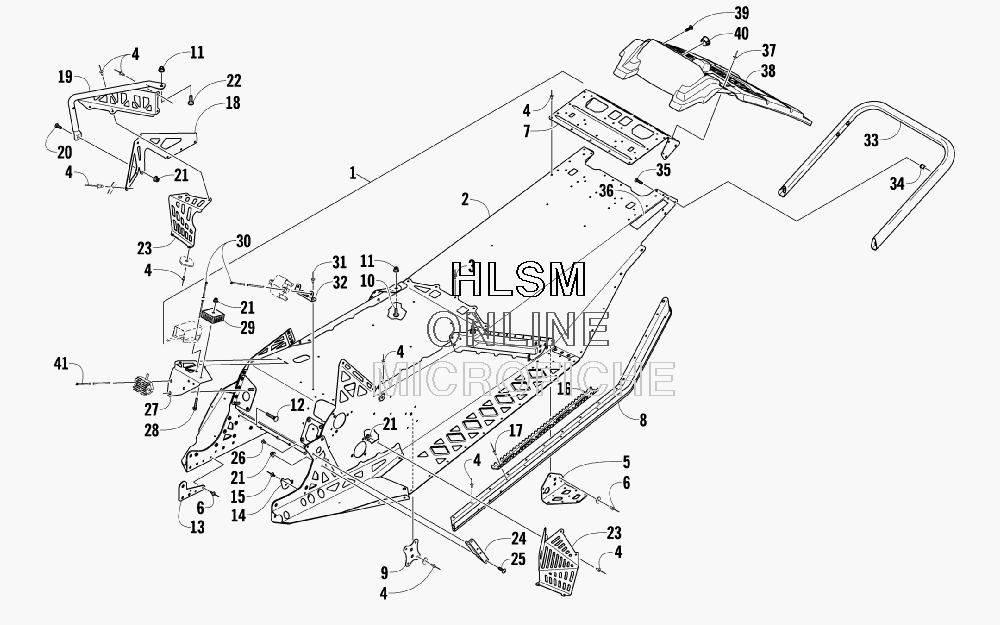

CHASSIS- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat 600 SNO PRO INTERNATIONAL - 2009 года выпуска
-
№АртикулНазвание
-
11707-299 CHASSIS ASSEMBLY - BLACK (INC. 2-10 AND TWO NO. 11)CHASSIS ASSEMBLY - BLACK (INC. 2-10 AND TWO NO. 11)
-
25606-846 ...TUNNEL, REAR...TUNNEL, REAR
-
38061-682 ...RIVET...RIVET
-
41623-130 ...RIVET...RIVET
-
55606-850 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
55606-851 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
61623-241 ...RIVET...RIVET
-
75606-847 ...END CAP, TUNNEL...END CAP, TUNNEL
-
85606-848 ...ROLL, TUNNEL - RIGHT...ROLL, TUNNEL - RIGHT
-
85606-849 ...ROLL, TUNNEL - LEFT...ROLL, TUNNEL - LEFT
-
96606-061 ...PLATE, BACKING...PLATE, BACKING
-
108476-835 ...SCREW, MACHINE...SCREW, MACHINE
-
118427-802 ...NUT, LOCK...NUT, LOCK
-
121623-020 BOLT, CARRIAGEBOLT, CARRIAGE
-
135606-628 BRACE, SUPPORT - INNERBRACE, SUPPORT - INNER
-
145606-672 PLATE, BACKING - PTO MOUNTINGPLATE, BACKING - PTO MOUNTING
-
158060-686 RIVETRIVET
-
164706-307 PLATE, GRIP - GREENPLATE, GRIP - GREEN
-
178060-506 RIVETRIVET
-
184706-510 GUSSET, TOE STOP - RIGHT - BLACKGUSSET, TOE STOP - RIGHT - BLACK
-
184706-511 GUSSET, TOE STOP - LEFT - BLACKGUSSET, TOE STOP - LEFT - BLACK
-
194706-514 HOOK, TOE - RIGHT - BLACKHOOK, TOE - RIGHT - BLACK
-
194706-515 HOOK, TOE - LEFT - BLACKHOOK, TOE - LEFT - BLACK
-
208476-630 SCREW, MACHINESCREW, MACHINE
-
218427-602 NUT, LOCKNUT, LOCK
-
228476-820 SCREW, MACHINESCREW, MACHINE
-
234706-516 SHIELD, TOE - RIGHT - BLACKSHIELD, TOE - RIGHT - BLACK
-
234706-517 SHIELD, TOE - LEFT - BLACKSHIELD, TOE - LEFT - BLACK
-
240608-585 BRACKET, ENGINE/CHASSIS MOUNTING - LEFTBRACKET, ENGINE/CHASSIS MOUNTING - LEFT
-
258476-620 SCREW, MACHINESCREW, MACHINE
-
261623-463 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
275606-966 PANEL, ELECTRICALPANEL, ELECTRICAL
-
288408-635 SCREW, CAPSCREW, CAP
-
290630-181 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
300123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
318060-682 RIVETRIVET
-
325606-536 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
334706-606 BUMPER, REAR - GREEN (INC. 34)BUMPER, REAR - GREEN (INC. 34)
-
340423-391 ...INSERT...INSERT
-
358476-616 SCREW, MACHINESCREW, MACHINE
-
368611-676 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
368611-677 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
378061-710 RIVETRIVET
-
385606-525 SNOWFLAPSNOWFLAP
-
391623-343 PLUG, HOLEPLUG, HOLE
-
405606-988 PLUG, HOLEPLUG, HOLE
-
410123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
