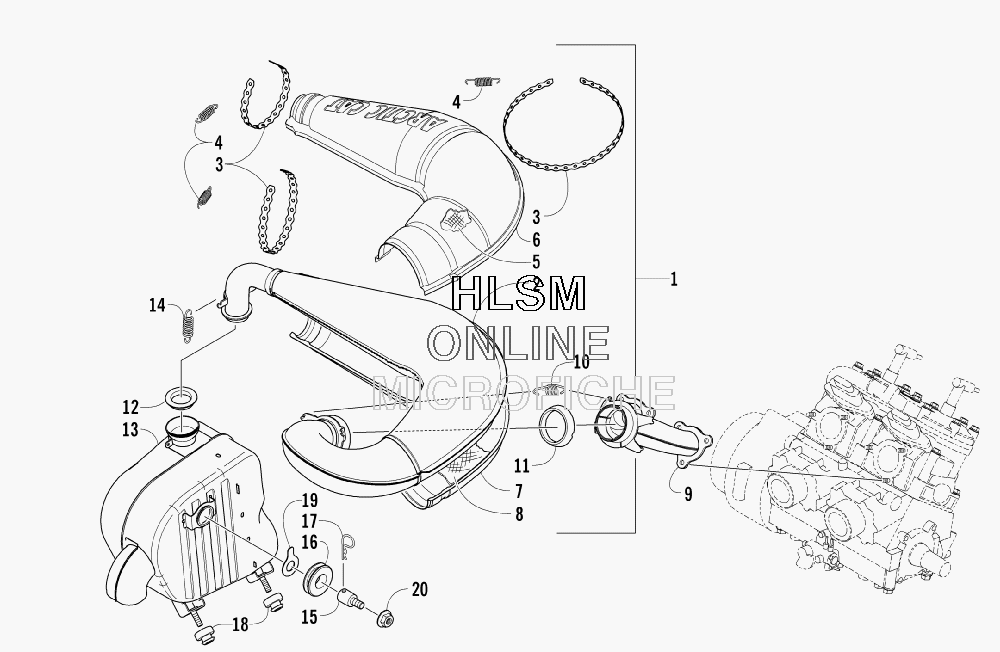

EXHAUST ASSEMBLY для Arctic Cat AC CROSSFIRE 500 - 2009 года выпуска
-
№АртикулНазвание
-
11712-361 CHAMBER, EXPANSION - ASSEMBLY (INC. 2-8)CHAMBER, EXPANSION - ASSEMBLY (INC. 2-8)
-
21712-360 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
30624-552 ...TIE, PERFORATED BAND - 5 FT...TIE, PERFORATED BAND - 5 FT
-
30624-541 ...TIE, PERFORATED BAND - 25 FT...TIE, PERFORATED BAND - 25 FT
-
41612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
51612-693 ...PACKING, EXPANSION CHAMBER - UPPER...PACKING, EXPANSION CHAMBER - UPPER
-
61612-696 ...COVER, EXPANSION CHAMBER - UPPER...COVER, EXPANSION CHAMBER - UPPER
-
71612-695 ...COVER, EXPANSION CHAMBER - LOWER...COVER, EXPANSION CHAMBER - LOWER
-
81612-694 ...PACKING, EXPANSION CHAMBER - LOWER...PACKING, EXPANSION CHAMBER - LOWER
-
91712-312 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
102612-399 SPRING, EXHAUSTSPRING, EXHAUST
-
112612-059 GASKET, EXHAUST - MANIFOLDGASKET, EXHAUST - MANIFOLD
-
120612-693 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
131712-509 RESONATORRESONATOR
-
140612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
151623-569 PIN, MOUNTING - RESONATORPIN, MOUNTING - RESONATOR
-
161623-375 GROMMETGROMMET
-
171623-379 CLIP, HAIRPINCLIP, HAIRPIN
-
182612-186 GROMMETGROMMET
-
192612-210 WASHER, TABWASHER, TAB
-
208047-486 NUT, LOCKNUT, LOCK
