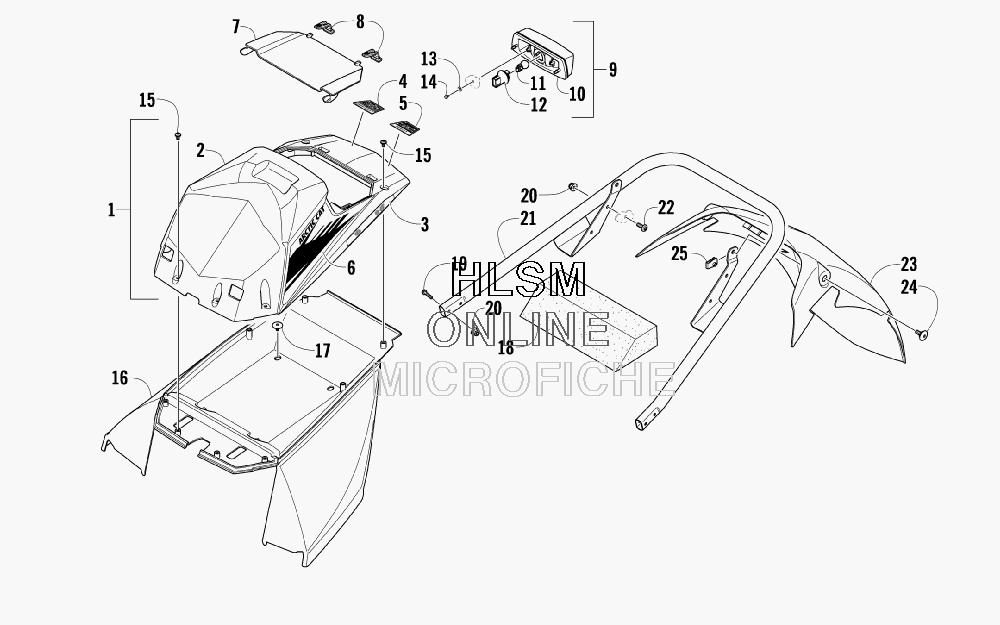

REAR BUMPER- STORAGE BOX- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat AC F570 INTERNATIONAL - 2009 года выпуска
-
№АртикулНазвание
-
12718-572 BOX, STORAGE W/DECALS (INC. 2-6)BOX, STORAGE W/DECALS (INC. 2-6)
-
22718-470 ...BOX, STORAGE W/O DECALS (INC. 3-5)...BOX, STORAGE W/O DECALS (INC. 3-5)
-
38611-182 ......DECAL, REFLECTOR - RIGHT......DECAL, REFLECTOR - RIGHT
-
38611-183 ......DECAL, REFLECTOR - LEFT......DECAL, REFLECTOR - LEFT
-
47611-432 ......DECAL, WARNING - TOWING (FRENCH)......DECAL, WARNING - TOWING (FRENCH)
-
57611-433 ......DECAL, WARNING - TOWING (ENGLISH)......DECAL, WARNING - TOWING (ENGLISH)
-
68611-404 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
68611-405 ...DECAL, REAR FENDER - LEFT...DECAL, REAR FENDER - LEFT
-
74606-732 LID, STORAGE BOX - BLACKLID, STORAGE BOX - BLACK
-
84606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
90509-022 TAILLIGHT W/SOCKET ASSEMBLY (INC. 10-12)TAILLIGHT W/SOCKET ASSEMBLY (INC. 10-12)
-
100509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
110409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
120409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
138050-127 WASHERWASHER
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
164706-284 FENDER, REAR - TUNNELFENDER, REAR - TUNNEL
-
170423-101 SCREW, BODYSCREW, BODY
-
180617-552 FOAM, CLOSE-OFF - SNOWFLAPFOAM, CLOSE-OFF - SNOWFLAP
-
198408-635 SCREW, CAPSCREW, CAP
-
208427-602 NUT, LOCKNUT, LOCK
-
211707-292 BUMPER, REARBUMPER, REAR
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
235606-118 SNOWFLAPSNOWFLAP
-
240423-416 SCREW, SHOULDERSCREW, SHOULDER
-
250423-577 CLIP, U-NUTCLIP, U-NUT
