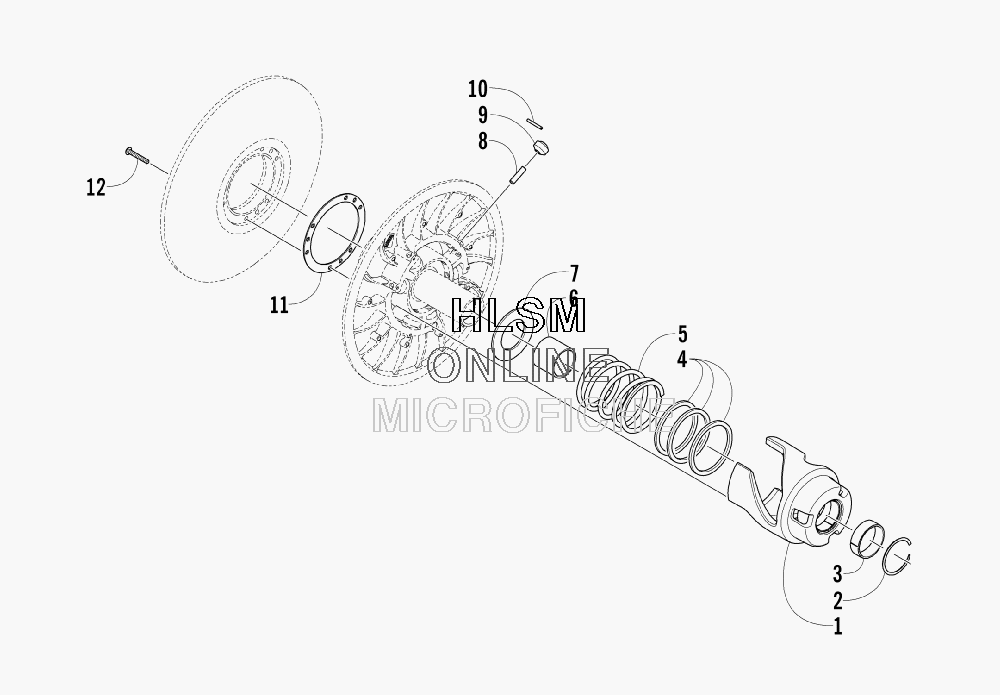

DRIVEN CLUTCH для Arctic Cat AC F570 - 2009 года выпуска
-
№АртикулНазвание
-
-0726-281 DRIVEN CLUTCH ASSEMBLYDRIVEN CLUTCH ASSEMBLY
-
10748-663 BRACKET, TORQUE 44/40...(INC. 2-3)BRACKET, TORQUE 44/40...(INC. 2-3)
-
10748-662 BRACKET, TORQUE 36...(INC. 2-3) (OVER 6,000 FT ALT.)BRACKET, TORQUE 36...(INC. 2-3) (OVER 6,000 FT ALT.)
-
20648-433 ...RING, SNAP...RING, SNAP
-
30648-009 ...BEARING...BEARING
-
40648-713 SEAT, SPRINGSEAT, SPRING
-
50648-693 SPRING, DRIVEN CLUTCH - WHITESPRING, DRIVEN CLUTCH - WHITE
-
60648-753 SPACERSPACER
-
70648-453 SEAT, SPRINGSEAT, SPRING
-
80648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
90648-139 ROLLER, CAMROLLER, CAM
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-650 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
121623-517 SCREW, MACHINESCREW, MACHINE
