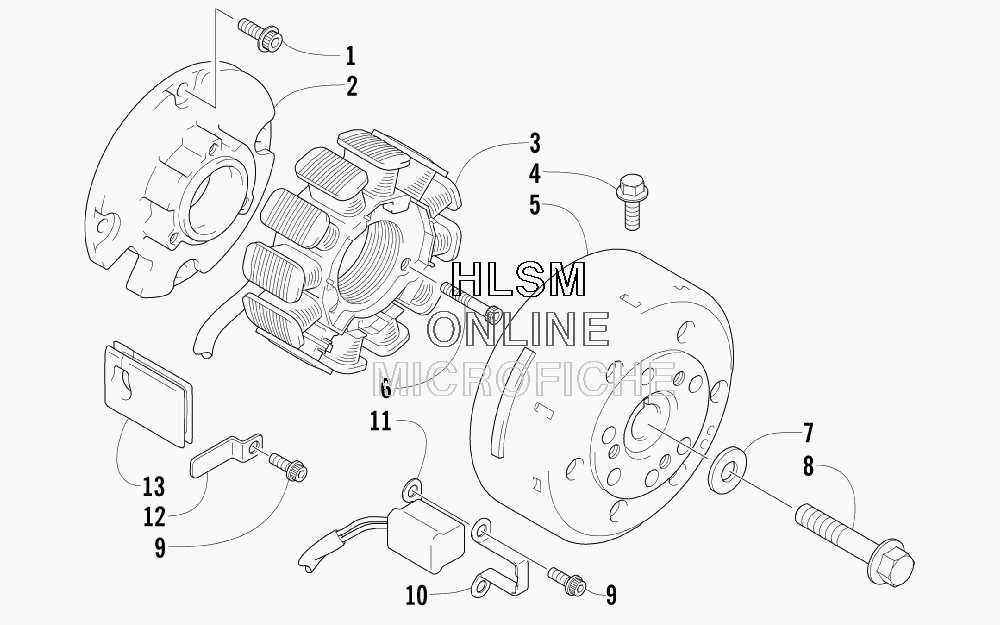

MAGNETO для Arctic Cat AC M6 - 2009 года выпуска
-
№АртикулНазвание
-
13007-449 SCREW, CAPSCREW, CAP
-
23006-524 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
33007-701 STATORSTATOR
-
43007-371 SCREW, CAPSCREW, CAP
-
53007-448 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
63007-450 SCREW, CAPSCREW, CAP
-
73005-987 WASHERWASHER
-
83006-476 SCREW, CAPSCREW, CAP
-
93007-433 SCREW, CAPSCREW, CAP
-
103003-972 CLAMP, SENSORCLAMP, SENSOR
-
113006-453 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
123005-960 PLATE, STATOR LEAD WIREPLATE, STATOR LEAD WIRE
-
133005-775 GROMMET, STATOR LEAD WIREGROMMET, STATOR LEAD WIRE
