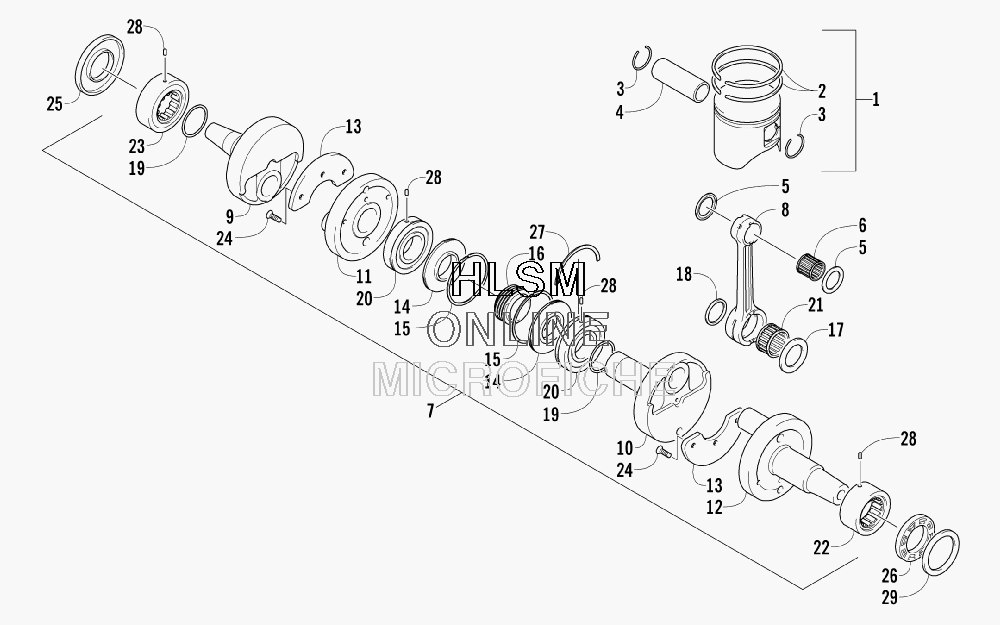

PISTON AND CRANKSHAFT для Arctic Cat AC M8 HCR - 2009 года выпуска
-
№АртикулНазвание
-
13007-528 PISTON SET (INC. 2-3)PISTON SET (INC. 2-3)
-
23006-394 RING SET, PISTONRING SET, PISTON
-
33005-304 CIRCLIP, PISTONCIRCLIP, PISTON
-
43006-501 PIN, PISTONPIN, PISTON
-
53008-500 WASHERWASHER
-
63008-503 BEARINGBEARING
-
73007-529 CRANKSHAFT ASSEMBLY (INC. 8-26)CRANKSHAFT ASSEMBLY (INC. 8-26)
-
83007-530 CONNECTING RODCONNECTING ROD
-
93007-531 CRANKSHAFT - RIGHTCRANKSHAFT - RIGHT
-
103007-437 CRANKSHAFT - MIDDLECRANKSHAFT - MIDDLE
-
113007-438 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
123006-506 CRANKSHAFT - LEFTCRANKSHAFT - LEFT
-
133006-719 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
143006-508 RACE, MIDDLE CRANK SEALRACE, MIDDLE CRANK SEAL
-
153005-508 RING, MIDDLE CRANK SEALRING, MIDDLE CRANK SEAL
-
163006-519 GEAR, OIPUMP DRIVEGEAR, OIPUMP DRIVE
-
173004-147 WASHERWASHER
-
183006-489 WASHERWASHER
-
193008-495 WASHERWASHER
-
203008-421 BEARINGBEARING
-
213007-532 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
223007-439 BEARING - LEFTBEARING - LEFT
-
233006-551 BEARING - RIGHTBEARING - RIGHT
-
243007-440 SCREW, MACHINESCREW, MACHINE
-
253007-533 SEAL, OI- RIGHTSEAL, OI- RIGHT
-
263003-759 SEAL, OI- LEFTSEAL, OI- LEFT
-
273003-359 C-RINGC-RING
-
283003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
293006-552 SPACER, OISEALSPACER, OISEAL
