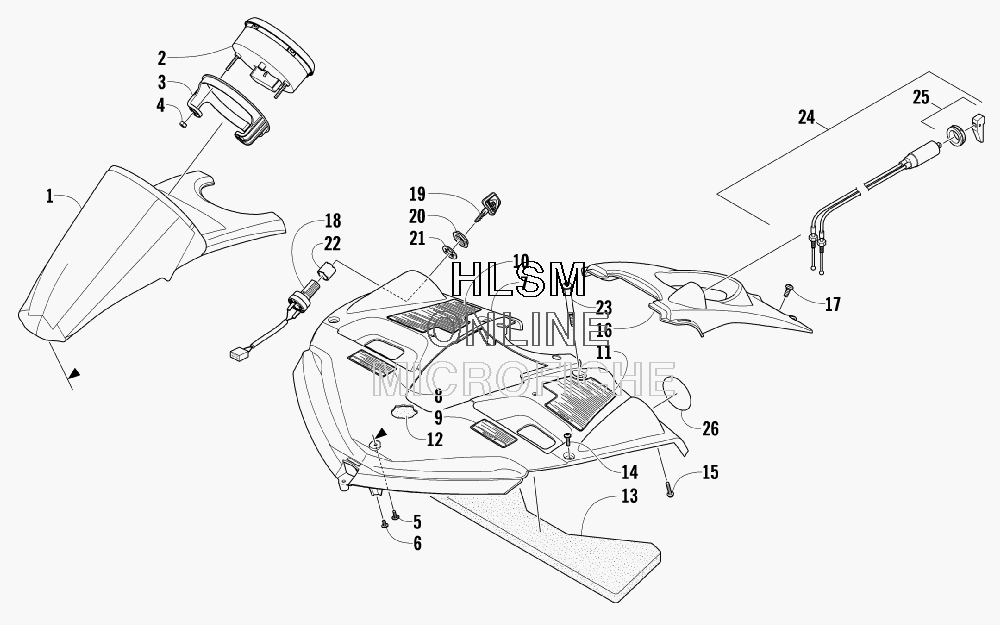

CONSOLE ASSEMBLY для Arctic Cat AC T570 INTERNATIONAL - 2009 года выпуска
-
№АртикулНазвание
-
14606-575 HOUSING, SPEEDOMETER/TACHOMETERHOUSING, SPEEDOMETER/TACHOMETER
-
20620-329 SPEEDOMETER/TACHOMETERSPEEDOMETER/TACHOMETER
-
30620-322 BRACKET, RETAININGBRACKET, RETAINING
-
40423-493 NUT W/WASHERNUT W/WASHER
-
51623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
72718-421 CONSOLE - BLACK (INC. 8-11)CONSOLE - BLACK (INC. 8-11)
-
87611-575 ...DECAL, CAUTION - ENGLISH...DECAL, CAUTION - ENGLISH
-
97611-574 ...DECAL, CAUTION - FRENCH...DECAL, CAUTION - FRENCH
-
108611-275 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
118611-276 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
-
120617-558 FOAM, CONSOLE - FRONTFOAM, CONSOLE - FRONT
-
130617-559 FOAM, CONSOLE - REARFOAM, CONSOLE - REAR
-
141623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
165606-146 CLOSE-OFF, HANDLEBARCLOSE-OFF, HANDLEBAR
-
170423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180609-806 SWITCH, IGNITION (INC. 19)SWITCH, IGNITION (INC. 19)
-
200609-113 NUTNUT
-
210123-899 WASHERWASHER
-
220609-450 SPACERSPACER
-
231623-669 SCREW, SHOULDERSCREW, SHOULDER
-
240687-208 CABLE, CHOKE (INC. 25)CABLE, CHOKE (INC. 25)
-
250687-219 ...LEVER, CHOKE CABLE - KIT...LEVER, CHOKE CABLE - KIT
-
261411-798 DECAL, AIRCATDECAL, AIRCAT
