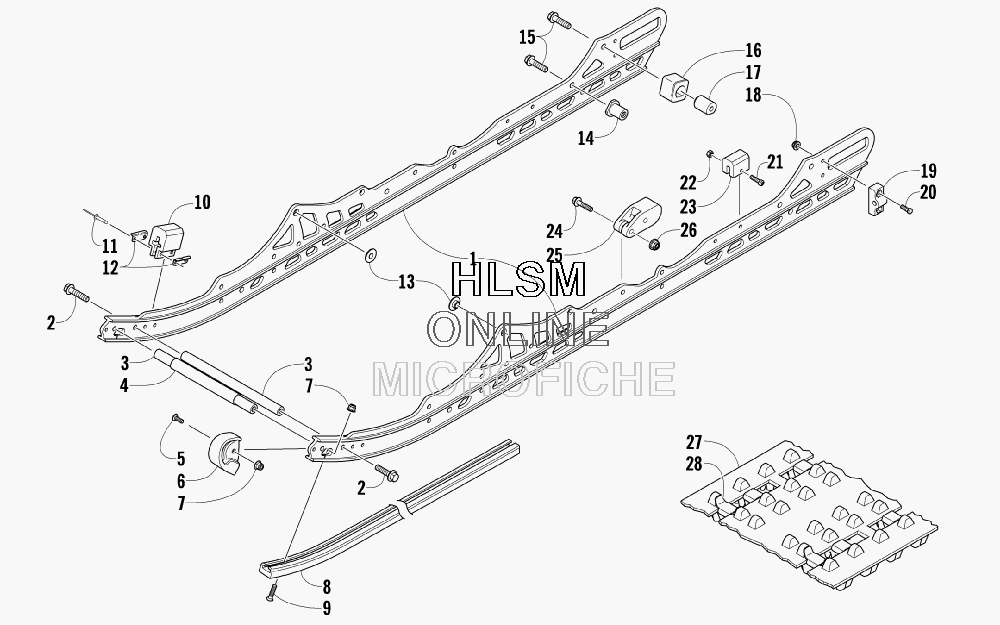

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat AC TZ1 TURBO LXR - 2009 года выпуска
-
№АртикулНазвание
-
-1704-802 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-469 RAIL, FORMEDRAIL, FORMED
-
28408-831 SCREW, CAPSCREW, CAP
-
33604-268 AXLE, INNERAXLE, INNER
-
42604-281 SPACERSPACER
-
58476-625 SCREW, MACHINESCREW, MACHINE
-
63604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78427-602 NUT, LOCKNUT, LOCK
-
82604-799 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
98474-625 SCREW, MACHINESCREW, MACHINE
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVETRIVET
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
133604-266 INSERT, RAILINSERT, RAIL
-
143604-275 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
158408-031 SCREW, CAPSCREW, CAP
-
162604-545 BLOCK, COUPLERBLOCK, COUPLER
-
173604-291 BUSHING, COUPLER BLOCKBUSHING, COUPLER BLOCK
-
188047-366 NUT, LOCKNUT, LOCK
-
190704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
208002-042 SCREW, CAPSCREW, CAP
-
218470-540 SCREW, MACHINESCREW, MACHINE
-
228427-502 NUT, LOCKNUT, LOCK
-
231604-429 PAD, SHOCKPAD, SHOCK
-
248408-850 SCREW, CAPSCREW, CAP
-
251604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
268427-802 NUT, LOCKNUT, LOCK
-
272602-163 TRACK ASSEMBLY (INC. 28)TRACK ASSEMBLY (INC. 28)
-
282602-081 ...CLIP, GUIDE...CLIP, GUIDE
