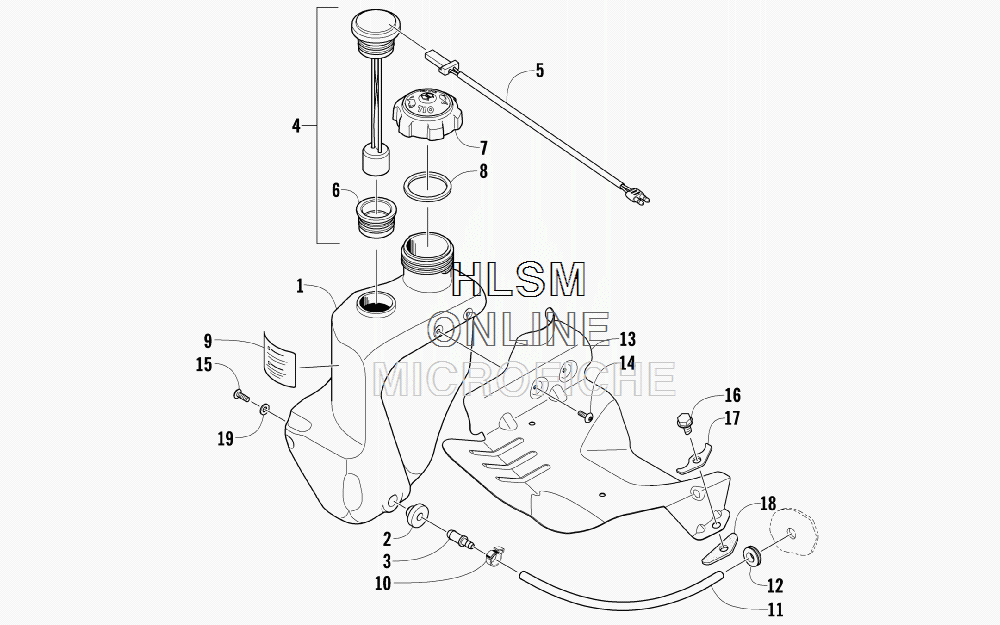

OIL TANK ASSEMBLY для Arctic Cat CROSSFIRE R 1000 EFI LE [S2009CFLEXUSB] - 2009 года выпуска
-
№АртикулНазвание
-
11670-930 TANK, OILTANK, OIL
-
21670-325 GROMMETGROMMET
-
31670-481 FITTINGFITTING
-
40609-503 SENSOR, LOW OIL - ASSEMBLY (INC. 5-6)SENSOR, LOW OIL - ASSEMBLY (INC. 5-6)
-
50609-518 ...SWITCH, OIL SENSOR W/HARNESS...SWITCH, OIL SENSOR W/HARNESS
-
60609-237 ...SEAL, GROMMET - OIL SENSOR...SEAL, GROMMET - OIL SENSOR
-
71670-365 CAP (INC. 8)CAP (INC. 8)
-
80109-733 ...SEAL, CAP...SEAL, CAP
-
94611-532 DECALDECAL
-
100124-045 CLAMP, HOSECLAMP, HOSE
-
110610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
110610-692 HOSE, OIL - 25 FTHOSE, OIL - 25 FT
-
121623-256 GROMMETGROMMET
-
135606-372 SHIELD, HEATSHIELD, HEAT
-
141623-705 SCREW, MACHINESCREW, MACHINE
-
151623-779 SCREW, MACHINESCREW, MACHINE
-
160623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
175606-657 SPACERSPACER
-
180617-598 PAD, HEAT SHIELDPAD, HEAT SHIELD
-
198050-217 WASHERWASHER
