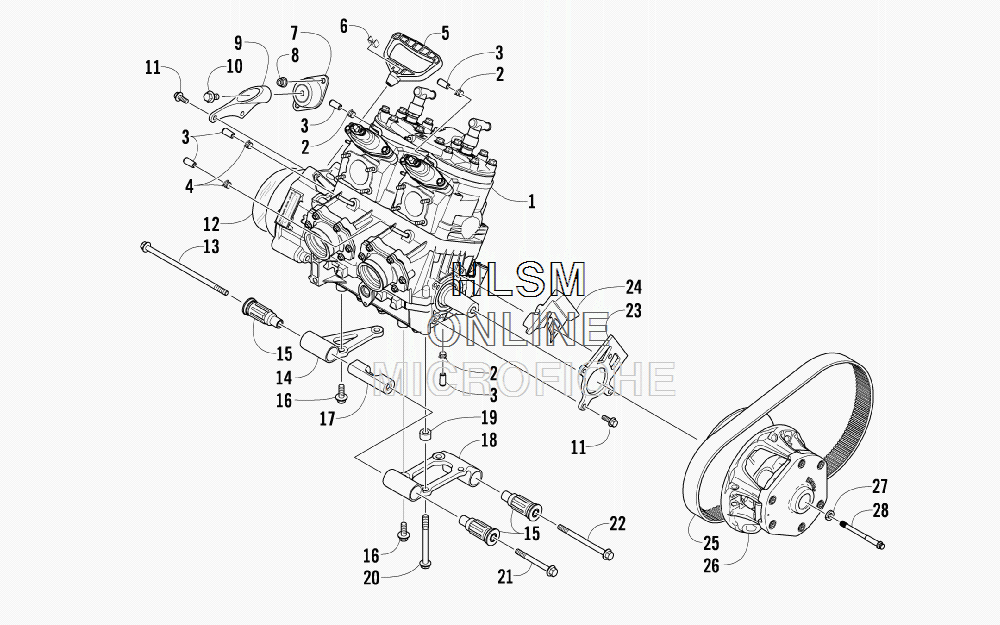

ENGINE AND RELATED PARTS для Arctic Cat 600 SNO PRO SNO CROSS INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
10662-579 ENGINE, AK60L3ENGINE, AK60L3
-
21623-234 CLAMPCLAMP
-
30670-323 PLUGPLUG
-
41623-233 CLAMPCLAMP
-
50636-363 HANDLE, RECOILHANDLE, RECOIL
-
60606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
70608-496 MOUNT, ENGINEMOUNT, ENGINE
-
88427-802 NUT, LOCKNUT, LOCK
-
90708-544 BRACKET, ENGINE MOUNTING - RIGHTBRACKET, ENGINE MOUNTING - RIGHT
-
108408-020 SCREW, CAPSCREW, CAP
-
118408-821 SCREW, CAPSCREW, CAP
-
121670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
131623-730 SCREW, CAPSCREW, CAP
-
140708-556 BRACKET, ENGINE MOUNTING - RIGHT FRONT (INC. ONE NO. 15)BRACKET, ENGINE MOUNTING - RIGHT FRONT (INC. ONE NO. 15)
-
150801-091 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
168409-026 SCREW, CAPSCREW, CAP
-
170608-592 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
180708-549 BRACKET, ENGINE MOUNTING - LEFT FRONT (INC. TWO NO. 15)BRACKET, ENGINE MOUNTING - LEFT FRONT (INC. TWO NO. 15)
-
190608-588 SPACERSPACER
-
203007-089 SCREW, CAPSCREW, CAP
-
218409-000 SCREW, CAPSCREW, CAP
-
221623-729 SCREW, CAPSCREW, CAP
-
230608-584 BRACKET, ENGINE MOUNTING - LEFTBRACKET, ENGINE MOUNTING - LEFT
-
240608-583 BUMPER, TORQUEBUMPER, TORQUE
-
250627-075 BELT, DRIVEBELT, DRIVE
-
260746-430 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
270623-210 WASHER, HIGH-COLLARWASHER, HIGH-COLLAR
-
280623-804 BOLT, CLUTCHBOLT, CLUTCH
