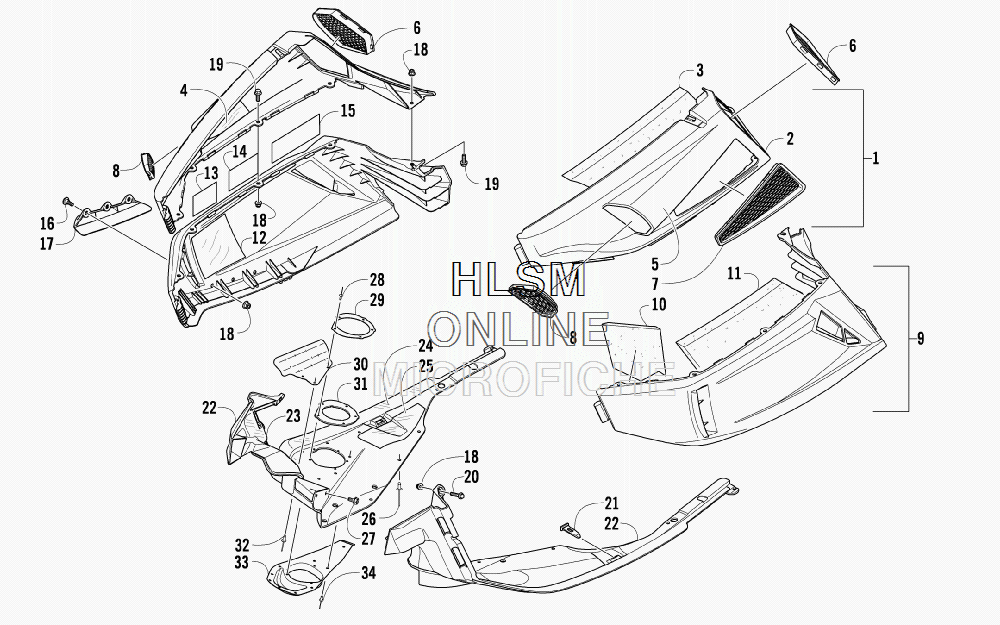

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat BEARCAT 570 - 2010 года выпуска
-
№АртикулНазвание
-
12718-866 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLUE (INC. 2-5)PANEL, SIDE - UPPER - RIGHT W/DECALS - BLUE (INC. 2-5)
-
12718-867 PANEL, SIDE - UPPER - LEFT W/DECALS - BLUE (INC. 2-3 AND 5)PANEL, SIDE - UPPER - LEFT W/DECALS - BLUE (INC. 2-3 AND 5)
-
22718-648 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLUE (INC. 3-4)...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLUE (INC. 3-4)
-
22718-817 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLUE (INC. 3)...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLUE (INC. 3)
-
30617-562 ......FOAM, UPPER SIDE PANEL - RIGHT......FOAM, UPPER SIDE PANEL - RIGHT
-
30617-057 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
44606-799 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
58611-798 ...DECAL, UPPER SIDE PANEL - RIGHT...DECAL, UPPER SIDE PANEL - RIGHT
-
58611-799 ...DECAL, UPPER SIDE PANEL - LEFT...DECAL, UPPER SIDE PANEL - LEFT
-
64606-650 VENT, UPPER SIDE PANEL - REAR - RIGHTVENT, UPPER SIDE PANEL - REAR - RIGHT
-
64606-651 VENT, UPPER SIDE PANEL - REAR - LEFTVENT, UPPER SIDE PANEL - REAR - LEFT
-
75606-185 VENT, UPPER SIDE PANEL - CENTER - LEFTVENT, UPPER SIDE PANEL - CENTER - LEFT
-
84606-662 VENT, UPPER SIDE PANEL - FORWARD - RIGHTVENT, UPPER SIDE PANEL - FORWARD - RIGHT
-
84606-663 VENT, UPPER SIDE PANEL - FORWARD - LEFTVENT, UPPER SIDE PANEL - FORWARD - LEFT
-
92718-274 PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-12)PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-12)
-
92718-349 PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)
-
100617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
100617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT...FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
110617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT...FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
110617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT...FOAM, LOWER SIDE PANEL - REAR - LEFT
-
125606-548 ...FOIL, PROTECTIVE - RIGHT...FOIL, PROTECTIVE - RIGHT
-
136606-219 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
146606-218 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
156606-220 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
160423-355 SCREW, SHOULDERSCREW, SHOULDER
-
175606-404 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
188427-602 NUT, LOCKNUT, LOCK
-
198408-620 SCREW, CAPSCREW, CAP
-
208408-635 SCREW, CAPSCREW, CAP
-
214606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
223706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
224706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
234606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
244606-798 FOIL, PROTECTIVE - OUTERFOIL, PROTECTIVE - OUTER
-
254606-797 FOIL, PROTECTIVE - CENTERFOIL, PROTECTIVE - CENTER
-
268061-708 RIVETRIVET
-
270623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
288060-510 RIVETRIVET
-
291712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
302612-268 SHIELD, HEATSHIELD, HEAT
-
312612-287 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
328061-508 RIVETRIVET
-
331712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
340623-778 RIVETRIVET
