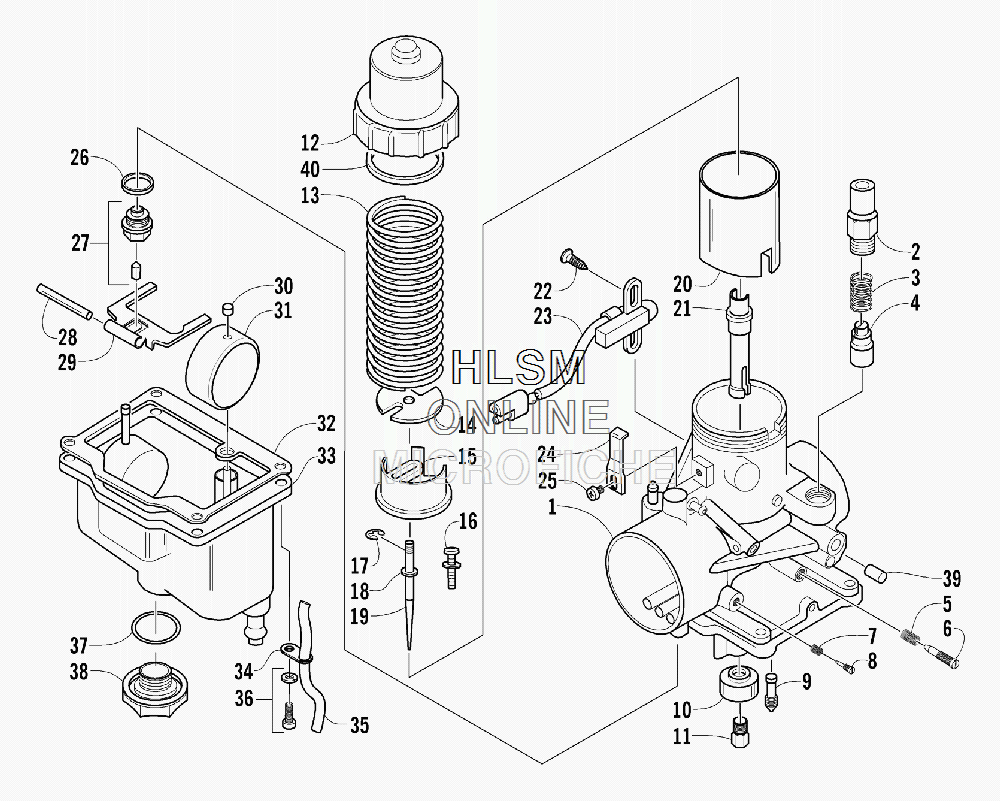

CARBURETOR для Arctic Cat F570 INTERNATONAL - 2010 года выпуска
-
№АртикулНазвание
-
-2670-155 COMPLETE CARBURETOR ASSEMBLY VM34-631COMPLETE CARBURETOR ASSEMBLY VM34-631
-
26505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
36505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
46505-035 STARTER PLUNGERSTARTER PLUNGER
-
56505-021 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
66505-022 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
76505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
86505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
96505-047 PILOT JET 40PILOT JET 40
-
96505-029 PILOT JET 35 - OVER 5,000 FT ALT.PILOT JET 35 - OVER 5,000 FT ALT.
-
106505-620 RING, BAFFLERING, BAFFLE
-
116505-137 MAIN JET 220MAIN JET 220
-
126505-558 CAP, MIXING BODYCAP, MIXING BODY
-
136506-393 SPRING, PISTON VALVESPRING, PISTON VALVE
-
146505-630 SEAT, SPRINGSEAT, SPRING
-
150770-037 RETAINER, CABLERETAINER, CABLE
-
166505-559 SCREW, MACHINESCREW, MACHINE
-
176505-610 E-CLIPE-CLIP
-
186505-437 WASHERWASHER
-
196506-408 JET NEEDLE 6CE25-4JET NEEDLE 6CE25-4
-
206505-561 PISTON VALVE CA 3.0PISTON VALVE CA 3.0
-
216506-407 NEEDLE JET P-4MNEEDLE JET P-4M
-
220623-137 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
230630-076 SWITCH, MAGNETICSWITCH, MAGNETIC
-
246505-186 PLATE, RETAININGPLATE, RETAINING
-
256505-036 SCREW, MACHINESCREW, MACHINE
-
266505-024 WASHERWASHER
-
276505-160 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
286505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
296505-027 ARM, FLOATARM, FLOAT
-
306505-010 CAPCAP
-
316505-009 FLOATFLOAT
-
326505-030 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
336505-632 CHAMBER, FLOATCHAMBER, FLOAT
-
346505-608 PLATE, HOSEPLATE, HOSE
-
356505-624 HOSEHOSE
-
366505-014 SCREW, MACHINESCREW, MACHINE
-
376505-622 O-RINGO-RING
-
386505-617 SCREW, DRAINSCREW, DRAIN
-
396505-569 CAPCAP
-
406505-607 WASHERWASHER
