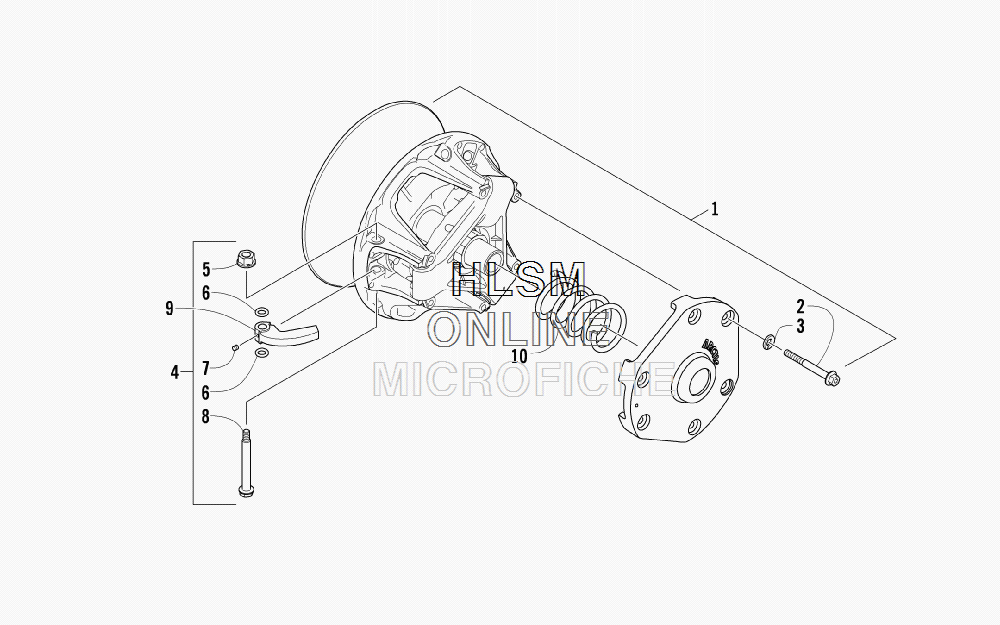

DRIVE CLUTCH для Arctic Cat F570 - 2010 года выпуска

№

Артикул

Название
1

0746-215 UNCALIBRATED DRIVE CLUTCH (INC. 2-3)

UNCALIBRATED DRIVE CLUTCH (INC. 2-3)

108 990 ₽
2

0646-431 ...SCREW, SHOULDER

...SCREW, SHOULDER

290 ₽
3

0646-430 ...WASHER, LOCK

...WASHER, LOCK

40 ₽
4

4639-674 KIT, CAM ARM (INC. 5-8)

KIT, CAM ARM (INC. 5-8)

8 730 ₽
5

8048-366 ...NUT, LOCK

...NUT, LOCK

110 ₽
6

1602-692 ...O-RING

...O-RING

110 ₽
7

1623-183 ...SCREW, SET

...SCREW, SET

250 ₽
8

0646-747 ...PIN, CAM ARM

...PIN, CAM ARM

2 700 ₽
9

0746-716 ARM, CAM (INC. 7)

ARM, CAM (INC. 7)

2 070 ₽
9

0746-695 ARM, CAM (INC. 7) - 5-9,000 FT ALT.

ARM, CAM (INC. 7) - 5-9,000 FT ALT.

2 070 ₽
9

0746-669 ARM, CAM (INC. 7) - OVER 9,000 FT ALT.

ARM, CAM (INC. 7) - OVER 9,000 FT ALT.

1 660 ₽
10

0646-376 SPRING, DRIVE CLUTCH - GOLD

SPRING, DRIVE CLUTCH - GOLD

7 900 ₽
10

0646-433 SPRING, DRIVE CLUTCH - BLACK/GOLD - OPTIONAL

SPRING, DRIVE CLUTCH - BLACK/GOLD - OPTIONAL

7 900 ₽
