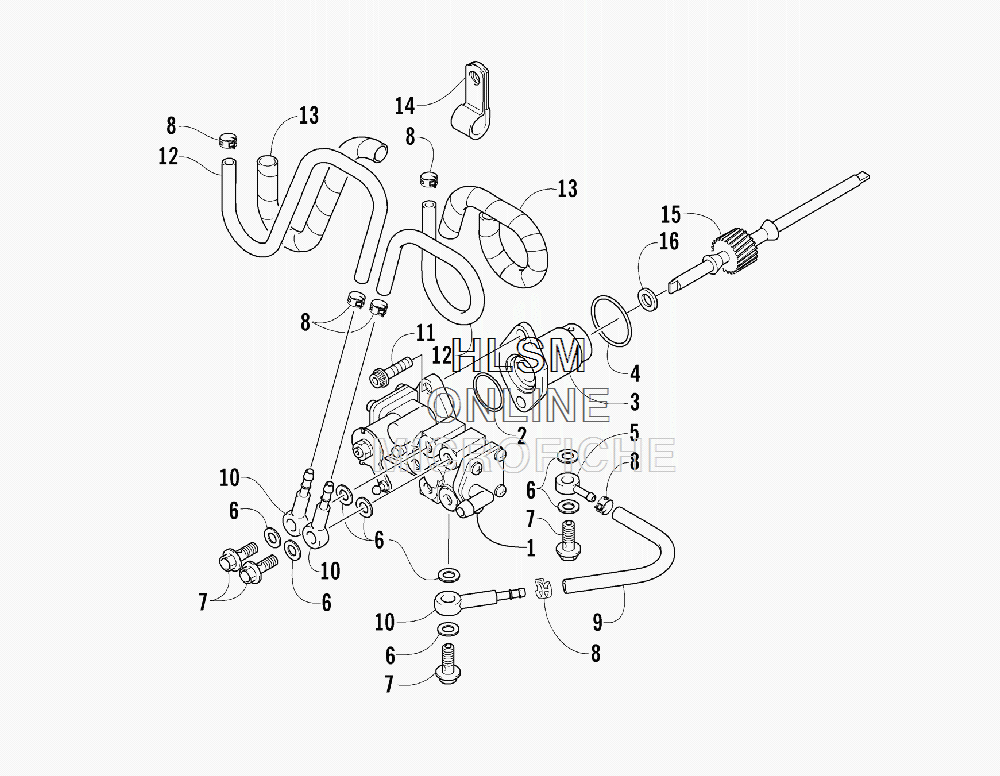

OIL PUMP для Arctic Cat F6 SNO PRO - 2010 года выпуска
-
№АртикулНазвание
-
13007-444 PUMP, OILPUMP, OIL
-
23008-030 O-RINGO-RING
-
33005-884 RETAINER, INPUT SHAFTRETAINER, INPUT SHAFT
-
43005-126 O-RINGO-RING
-
53003-661 UNIONUNION
-
63402-009 GASKETGASKET
-
73004-346 UNIONUNION
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93005-357 HOSEHOSE
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113007-445 SCREW, CAPSCREW, CAP
-
123008-035 HOSEHOSE
-
133005-032 PROTECTOR, HOSEPROTECTOR, HOSE
-
143005-696 CLAMPCLAMP
-
153006-520 GEAR, DRIVENGEAR, DRIVEN
-
163423-300 SHIMSHIM
