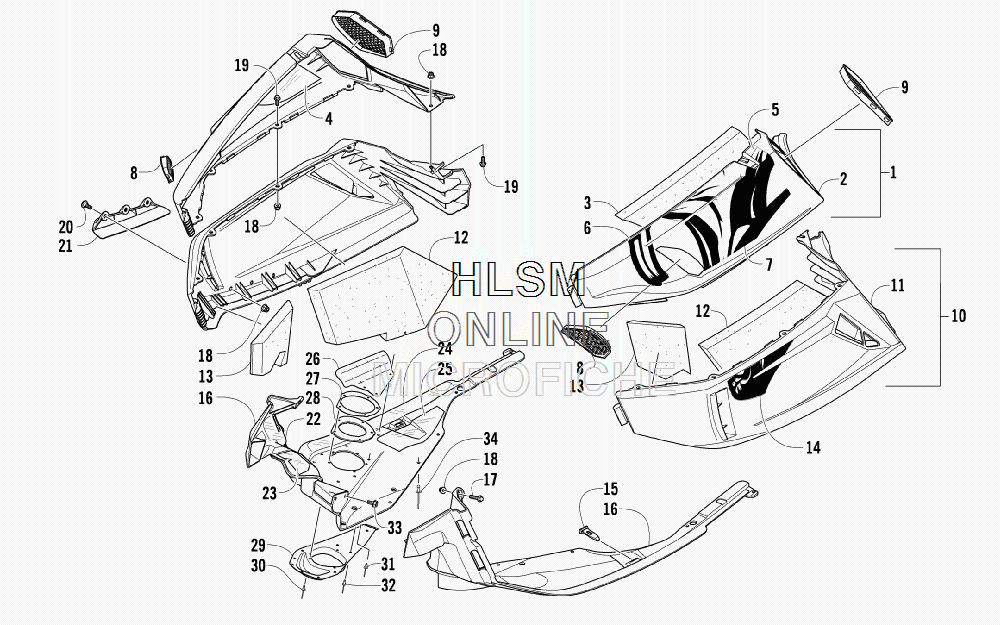

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F8 SNO PRO GREEN - 2010 года выпуска
-
№АртикулНазвание
-
12718-902 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-7)PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-7)
-
12718-903 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-7)PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-7)
-
22718-790 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)
-
22718-791 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
-
30617-562 ......FOAM, UPPER SIDE PANEL - RIGHT......FOAM, UPPER SIDE PANEL - RIGHT
-
30617-563 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
40637-318 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
58611-750 ...DECAL, UPPER SIDE PANEL - UPPER - RIGHT...DECAL, UPPER SIDE PANEL - UPPER - RIGHT
-
58611-751 ...DECAL, UPPER SIDE PANEL - UPPER - LEFT...DECAL, UPPER SIDE PANEL - UPPER - LEFT
-
68611-748 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT
-
68611-749 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT...DECAL, UPPER SIDE PANEL - FORWARD - LEFT
-
78611-752 ...DECAL, UPPER SIDE PANEL - CENTER - RIGHT...DECAL, UPPER SIDE PANEL - CENTER - RIGHT
-
78611-753 ...DECAL, UPPER SIDE PANEL - CENTER - LEFT...DECAL, UPPER SIDE PANEL - CENTER - LEFT
-
84606-662 VENT, UPPER SIDE PANEL - FRONT - RIGHT - BLACKVENT, UPPER SIDE PANEL - FRONT - RIGHT - BLACK
-
84606-663 VENT, UPPER SIDE PANEL - FRONT - LEFT - BLACKVENT, UPPER SIDE PANEL - FRONT - LEFT - BLACK
-
94606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACKVENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
-
94606-651 VENT, UPPER SIDE PANEL - REAR - LEFT - BLACKVENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
-
102718-906 PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 11-14)PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 11-14)
-
102718-907 PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 11-14)PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 11-14)
-
112718-798 ...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 12-13)...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 12-13)
-
112718-349 ...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 12-13)...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 12-13)
-
120617-568 ......FOAM, LOWER SIDE PANEL - REAR - RIGHT......FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
120617-567 ......FOAM, LOWER SIDE PANEL - REAR - LEFT......FOAM, LOWER SIDE PANEL - REAR - LEFT
-
130617-564 ......FOAM, LOWER SIDE PANEL - FRONT - RIGHT......FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
130617-566 ......FOAM, LOWER SIDE PANEL - FRONT - LEFT......FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
148611-756 ...DECAL, LOWER SIDE PANEL - RIGHT...DECAL, LOWER SIDE PANEL - RIGHT
-
148611-757 ...DECAL, LOWER SIDE PANEL - LEFT...DECAL, LOWER SIDE PANEL - LEFT
-
154606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
163706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
164706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
178408-635 SCREW, CAPSCREW, CAP
-
188427-602 NUT, LOCKNUT, LOCK
-
198408-620 SCREW, CAPSCREW, CAP
-
200423-355 SCREW, SHOULDERSCREW, SHOULDER
-
215606-404 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
224606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
234606-796 FOIL, PROTECTIVE - UPPER FRONTFOIL, PROTECTIVE - UPPER FRONT
-
244606-798 FOIL, PROTECTIVE - OUTERFOIL, PROTECTIVE - OUTER
-
254606-797 FOIL, PROTECTIVE - CENTERFOIL, PROTECTIVE - CENTER
-
262612-268 SHIELD, HEATSHIELD, HEAT
-
271712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
282612-480 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
291712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
308060-510 RIVET BLACKRIVET BLACK
-
318061-508 RIVET BLACKRIVET BLACK
-
320623-778 RIVETRIVET
-
330623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
348061-708 RIVETRIVET
