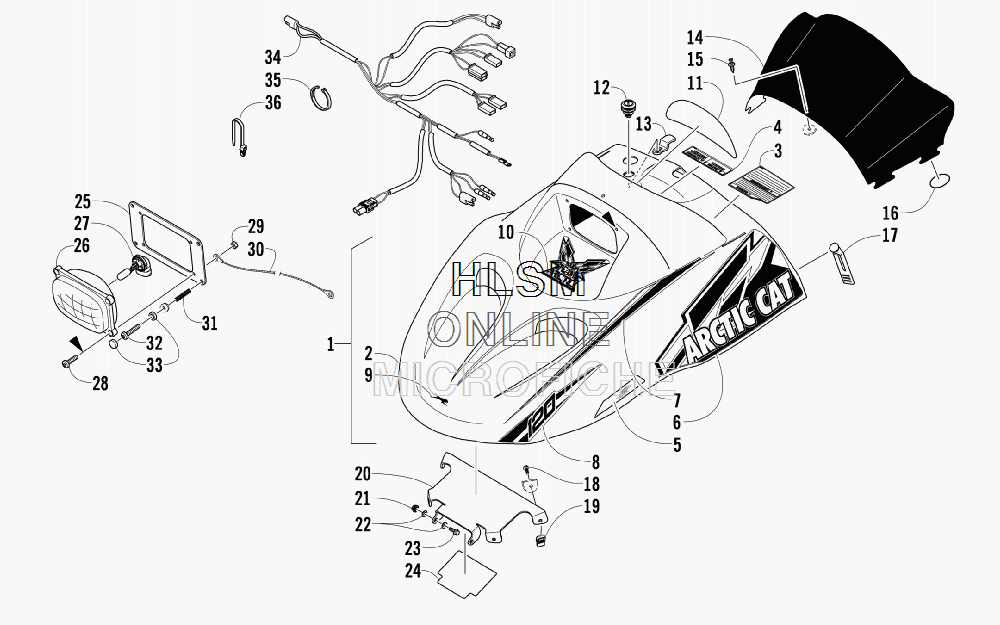

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat SNO PRO 120 - 2010 года выпуска
-
№АртикулНазвание
-
12718-741 HOOD W/DECALS - GREEN (INC. 2-11)HOOD W/DECALS - GREEN (INC. 2-11)
-
22718-270 ...HOOD W/O DECALS - GREEN (INC. 3-5)...HOOD W/O DECALS - GREEN (INC. 3-5)
-
33611-755 ......DECAL, CAUTION - THROTTLE......DECAL, CAUTION - THROTTLE
-
43611-678 ......DECAL, CAUTION - HOOD......DECAL, CAUTION - HOOD
-
58611-708 ......DECAL, REFLECTOR - RIGHT - AMBER......DECAL, REFLECTOR - RIGHT - AMBER
-
58611-709 ......DECAL, REFLECTOR - LEFT - AMBER......DECAL, REFLECTOR - LEFT - AMBER
-
68611-712 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
68611-713 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
78611-714 ...DECAL, HOOD - UPPER RIGHT...DECAL, HOOD - UPPER RIGHT
-
78611-715 ...DECAL, HOOD - UPPER LEFT...DECAL, HOOD - UPPER LEFT
-
88611-710 ...DECAL, HOOD - FORWARD - RIGHT...DECAL, HOOD - FORWARD - RIGHT
-
88611-711 ...DECAL, HOOD - FORWARD - LEFT...DECAL, HOOD - FORWARD - LEFT
-
98611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
108611-716 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
119611-042 ...DECAL, HOOD/CONSOLE...DECAL, HOOD/CONSOLE
-
121623-846 LATCH, HOODLATCH, HOOD
-
131623-847 ARM, HOOD LATCHARM, HOOD LATCH
-
144606-411 WINDSHIELDWINDSHIELD
-
150623-243 CLIP, RETAININGCLIP, RETAINING
-
160616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
171606-930 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
180623-902 SCREW, MACHINESCREW, MACHINE
-
191623-023 CLIP, U-NUTCLIP, U-NUT
-
202706-140 BRACKET, MOUNTING - HOOD - UPPERBRACKET, MOUNTING - HOOD - UPPER
-
211623-868 NUT, LOCKNUT, LOCK
-
221623-011 WASHERWASHER
-
238020-039 SCREW, CAPSCREW, CAP
-
248611-603 DECAL, JET CHARTDECAL, JET CHART
-
253706-719 PLATE, ADAPTER - HEADLIGHTPLATE, ADAPTER - HEADLIGHT
-
260609-817 HEADLIGHT ASSEMBLY (INC. 27)HEADLIGHT ASSEMBLY (INC. 27)
-
270609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
281623-859 SCREW, MACHINESCREW, MACHINE
-
298041-246 NUT, LOCKNUT, LOCK
-
302606-247 CABLE, HOODCABLE, HOOD
-
310123-614 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
321623-860 SCREW, MACHINESCREW, MACHINE
-
330124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
341686-578 HARNESS, WIRING - MAINHARNESS, WIRING - MAIN
-
350123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
360623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
