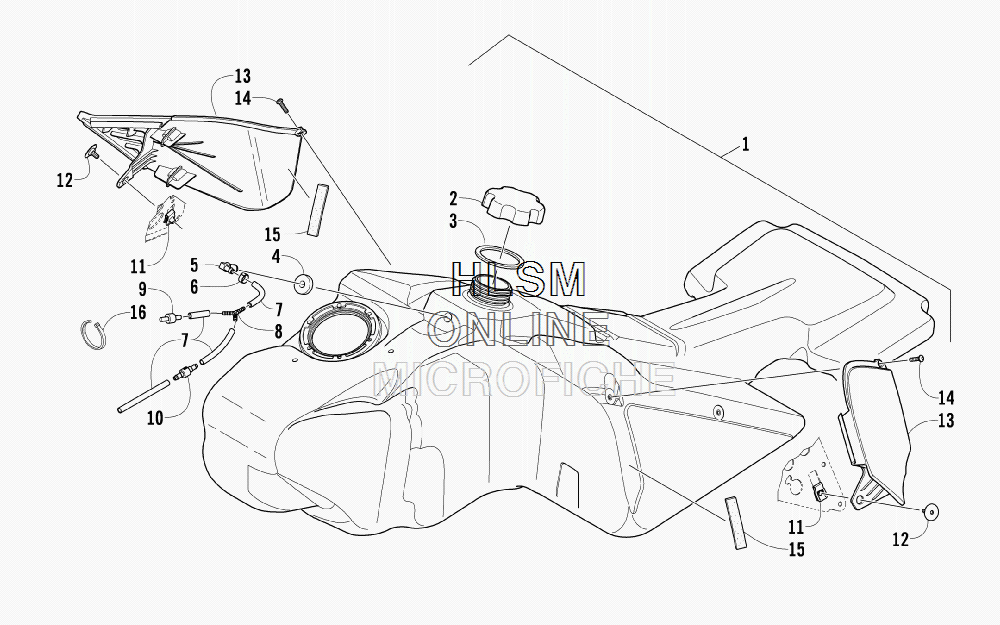

GAS TANK ASSEMBLY для Arctic Cat T570 INTERNATIONAL - 2010 года выпуска
-
№АртикулНазвание
-
12670-056 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
41670-325 ...GROMMET...GROMMET
-
51670-494 ...FITTING, ELBOW...FITTING, ELBOW
-
61623-233 CLAMP, HOSECLAMP, HOSE
-
76101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
76101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
82670-105 Y-FITTINGY-FITTING
-
90610-059 VALVE, CHECKVALVE, CHECK
-
101670-913 VALVE, PRESSURE-RELIEFVALVE, PRESSURE-RELIEF
-
110423-577 CLIP, U-NUTCLIP, U-NUT
-
120423-101 SCREW, SHOULDERSCREW, SHOULDER
-
135606-144 KNEE PAD, RIGHTKNEE PAD, RIGHT
-
135606-145 KNEE PAD, LEFTKNEE PAD, LEFT
-
148470-510 SCREW, MACHINESCREW, MACHINE
-
150619-946 TAPE, FOAM - 1 FTTAPE, FOAM - 1 FT
-
160123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
