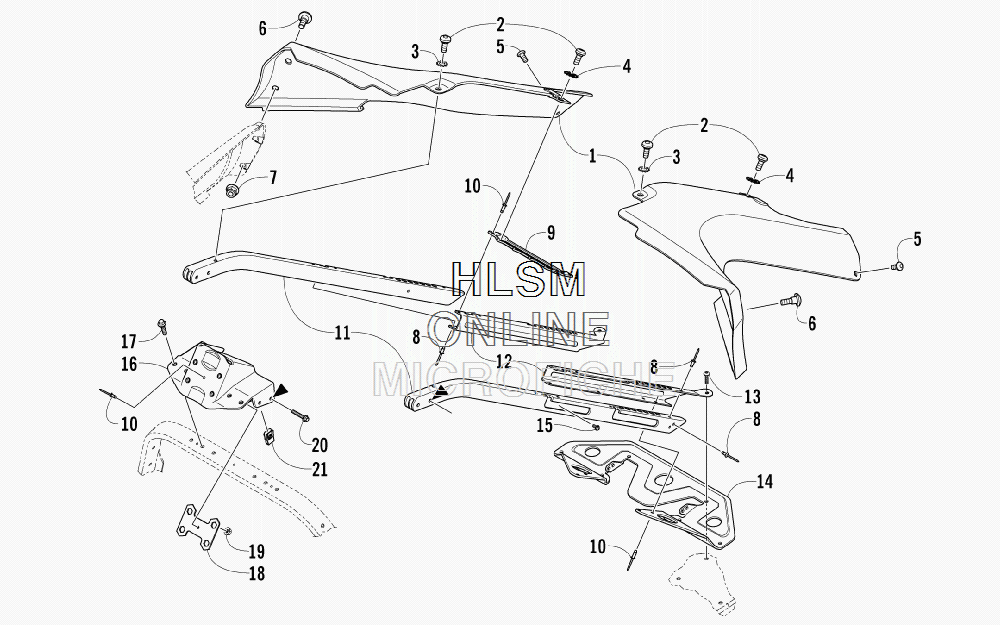

SEAT SUPPORT ASSEMBLY для Arctic Cat Z1 LXR - 2010 года выпуска
-
№АртикулНазвание
-
14706-612 SPAR, REAR - RIGHT - BLACKSPAR, REAR - RIGHT - BLACK
-
14706-613 SPAR, REAR - LEFT - BLACKSPAR, REAR - LEFT - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
38053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
48053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
58470-510 SCREW, MACHINESCREW, MACHINE
-
60423-355 SCREW, SHOULDERSCREW, SHOULDER
-
78427-602 NUT, LOCKNUT, LOCK
-
88060-484 RIVETRIVET
-
94606-329 BRACKET, CROSSOVERBRACKET, CROSSOVER
-
108060-488 RIVETRIVET
-
115606-098 TUBE, SUPPORT - RIGHTTUBE, SUPPORT - RIGHT
-
115606-099 TUBE, SUPPORT - LEFTTUBE, SUPPORT - LEFT
-
125606-100 BRACKET, SLIDE - RIGHTBRACKET, SLIDE - RIGHT
-
125606-101 BRACKET, SLIDE - LEFTBRACKET, SLIDE - LEFT
-
138470-520 SCREW, MACHINESCREW, MACHINE
-
145606-094 PLATE, SUPPORT - LOWERPLATE, SUPPORT - LOWER
-
150623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
164606-328 PLATE, SUPPORT - UPPERPLATE, SUPPORT - UPPER
-
178408-625 SCREW, CAPSCREW, CAP
-
180605-948 BRACKET, NUT HOLDERBRACKET, NUT HOLDER
-
198424-602 NUTNUT
-
208408-535 SCREW, CAPSCREW, CAP
-
211623-637 CLIP, U-NUTCLIP, U-NUT
