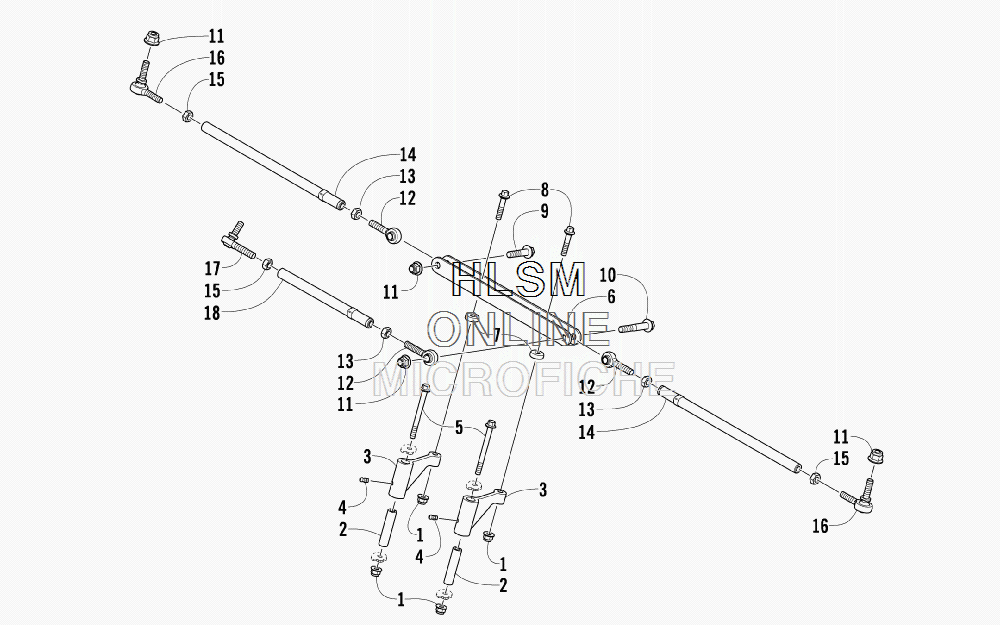

TIE ROD ASSEMBLY для Arctic Cat Z1 TURBO EXT METALLIC CAT GREEN - 2010 года выпуска
-
№АртикулНазвание
-
18427-802 NUT, LOCKNUT, LOCK
-
22603-436 AXLE, STEERING ARMAXLE, STEERING ARM
-
31707-115 ARM, STEERING - ASSEMBLY (INC. 4)ARM, STEERING - ASSEMBLY (INC. 4)
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
58408-885 SCREW, CAPSCREW, CAP
-
61705-217 DRAG LINK (INC. 7)DRAG LINK (INC. 7)
-
70605-760 ...BEARING...BEARING
-
81623-662 SCREW, SHOULDERSCREW, SHOULDER
-
98408-045 SCREW, CAPSCREW, CAP
-
108408-065 SCREW, CAPSCREW, CAP
-
118427-002 NUT, LOCKNUT, LOCK
-
121605-018 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
138420-002 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
140605-926 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
150423-013 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
161602-019 CHAIN, ROLLER-F120 (APPLIED PROD)CHAIN, ROLLER-F120 (APPLIED PROD)
-
171605-021 BALL JOINT, TIE ROD - LEFT-HAND THREADBALL JOINT, TIE ROD - LEFT-HAND THREAD
-
180605-925 TUBE, TIE RODTUBE, TIE ROD
