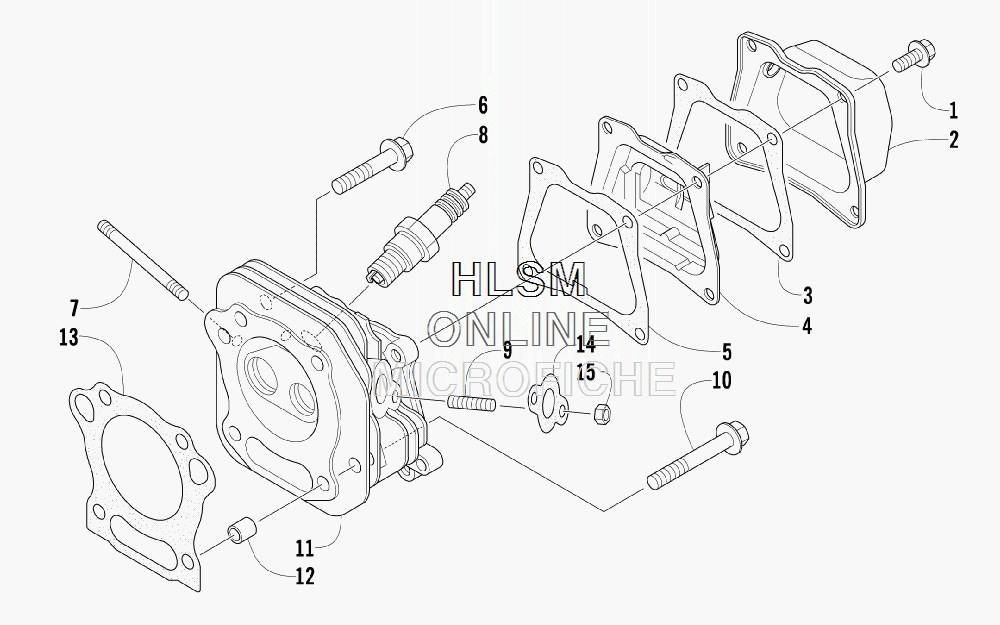

CYLINDER AND AIR BREATHER ASSEMBLY для Arctic Cat 120 SNO PRO - 2011 года выпуска
-
№АртикулНазвание
-
13020-121 SCREW, CAPSCREW, CAP
-
23020-027 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
33020-026 GASKET, HEADGASKET, HEAD
-
43020-025 BREATHER, AIRBREATHER, AIR
-
53020-028 GASKET, BREATHERGASKET, BREATHER
-
63020-124 SCREW, CAPSCREW, CAP
-
73020-093 BOLT, STUDBOLT, STUD
-
80217-809 PLUG, SPARK (BPR4ES)PLUG, SPARK (BPR4ES)
-
93020-118 BOLT, STUDBOLT, STUD
-
103020-125 SCREW, CAPSCREW, CAP
-
113020-008 HEAD, CYLINDERHEAD, CYLINDER
-
123020-128 PIN, DOWELPIN, DOWEL
-
133020-009 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
143020-059 GASKET, EXHAUSTGASKET, EXHAUST
-
153020-117 NUTNUT
