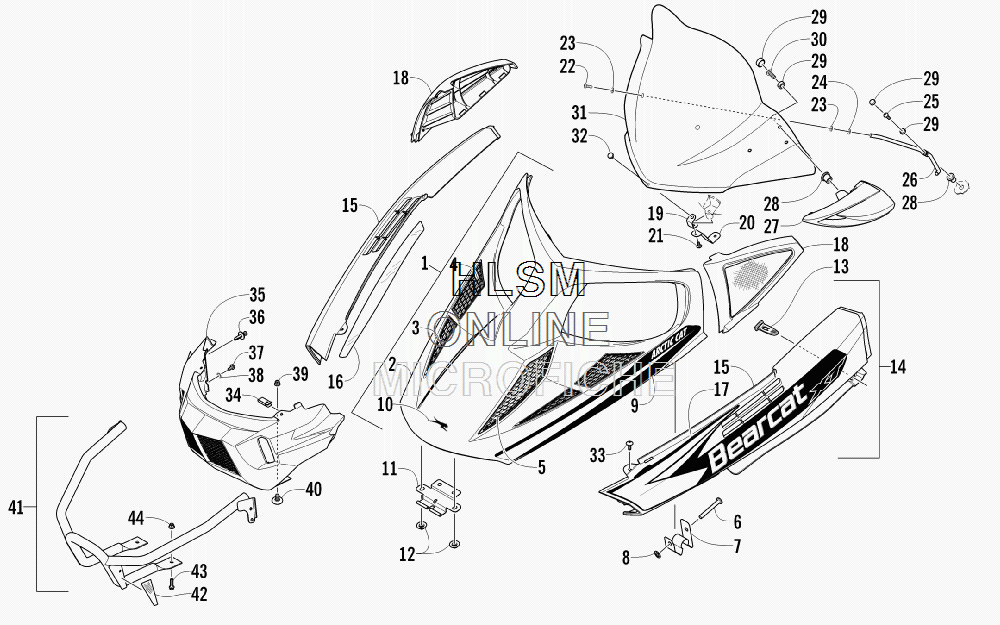

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT Z1 XT LTD - 2011 года выпуска
-
№АртикулНазвание
-
13718-069 HOOD W/DECALS - CRIMSON RED (INC. 2-10)HOOD W/DECALS - CRIMSON RED (INC. 2-10)
-
27800-955 ...HOOD W/O DECALS - CRIMSON RED (INC. 3-8)...HOOD W/O DECALS - CRIMSON RED (INC. 3-8)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-610 ......PIN, RETAINING......PIN, RETAINING
-
75706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
75706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
81623-409 ......NUT, PUSH......NUT, PUSH
-
99611-274 ...DECAL, "ARCTIC CAT" - RIGHT...DECAL, "ARCTIC CAT" - RIGHT
-
99611-275 ...DECAL, "ARCTIC CAT" - LEFT...DECAL, "ARCTIC CAT" - LEFT
-
108611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
116606-027 BRACKET, HINGEBRACKET, HINGE
-
121623-469 NUT, STAMPEDNUT, STAMPED
-
134606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
143718-070 SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 15-17)SPAR, FRONT W/DECALS - RIGHT - CRIMSON RED (INC. 15-17)
-
143718-071 SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 15 AND 17)SPAR, FRONT W/DECALS - LEFT - CRIMSON RED (INC. 15 AND 17)
-
155706-002 ...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED...SPAR, FRONT W/O DECALS - RIGHT - CRIMSON RED
-
155706-003 ...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED...SPAR, FRONT W/O DECALS - LEFT - CRIMSON RED
-
164606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
179611-276 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
179611-277 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
186606-248 BEZEL, INTAKE - RIGHT - CRIMSON REDBEZEL, INTAKE - RIGHT - CRIMSON RED
-
186606-249 BEZEL, INTAKE - LEFT - CRIMSON REDBEZEL, INTAKE - LEFT - CRIMSON RED
-
194606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
205606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
211623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
221623-902 SCREW, MACHINESCREW, MACHINE
-
231623-837 WASHER, RUBBERWASHER, RUBBER
-
248050-242 WASHERWASHER
-
250623-121 SCREW, MACHINESCREW, MACHINE
-
265706-073 SUPPORT, WINDSHIELDSUPPORT, WINDSHIELD
-
274639-734 MIRROR KIT (INC. 28-30)MIRROR KIT (INC. 28-30)
-
280623-845 ...NUT, EXPANSION...NUT, EXPANSION
-
290124-054 ...SNAP CAP W/WASHER...SNAP CAP W/WASHER
-
300623-902 ...SCREW, MACHINE...SCREW, MACHINE
-
316606-263 WINDSHIELD, EX HIGH W/HOLESWINDSHIELD, EX HIGH W/HOLES
-
321623-677 RIVET, PLASTICRIVET, PLASTIC
-
330623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
341623-030 CLIP, U-NUTCLIP, U-NUT
-
355706-001 FASCIA, FRONT - CRIMSON REDFASCIA, FRONT - CRIMSON RED
-
360623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
370623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
388053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
398427-602 NUT, LOCKNUT, LOCK
-
401623-775 SCREW, SHOULDERSCREW, SHOULDER
-
414706-961 BUMPER, FRONT (INC. 42)BUMPER, FRONT (INC. 42)
-
429611-386 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
429611-387 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
438408-025 SCREW, CAPSCREW, CAP
-
448427-002 NUT, LOCKNUT, LOCK
