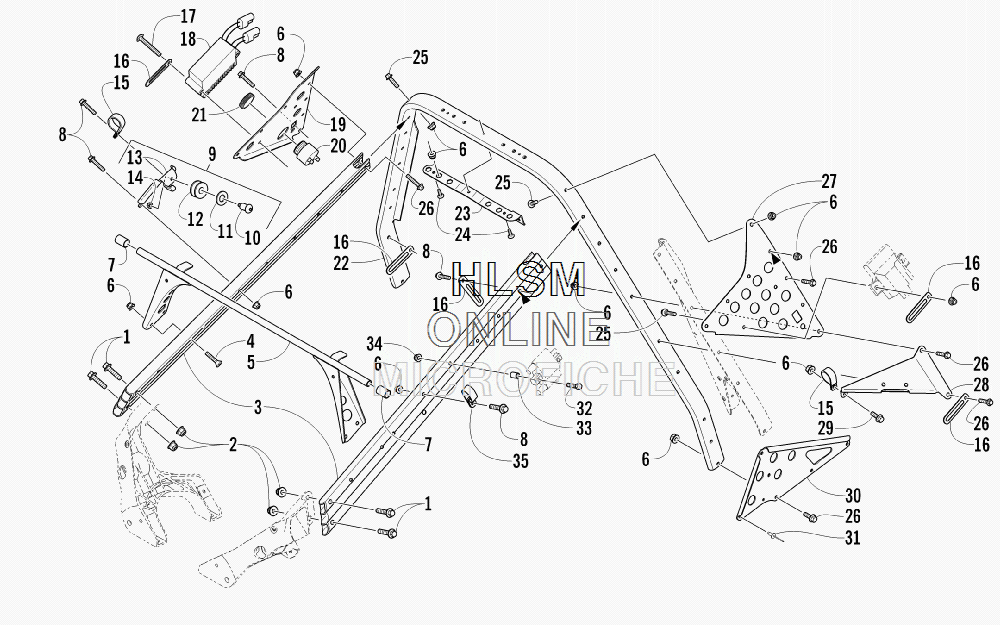

STEERING SUPPORT ASSEMBLY для Arctic Cat F570 (ORANGE) - 2011 года выпуска
-
№АртикулНазвание
-
18408-840 SCREW, CAPSCREW, CAP
-
28427-802 NUT, LOCKNUT, LOCK
-
30607-919 FRAME, UPPER - FRONTFRAME, UPPER - FRONT
-
41623-776 SCREW, MACHINESCREW, MACHINE
-
54706-356 BRACKET, SUPPORT - HEADLIGHTBRACKET, SUPPORT - HEADLIGHT
-
68427-602 NUT, LOCKNUT, LOCK
-
71623-900 SPACERSPACER
-
88408-635 SCREW, CAPSCREW, CAP
-
93706-955 BRACKET, RECOIL - ASSEMBLY (INC. 10-14)BRACKET, RECOIL - ASSEMBLY (INC. 10-14)
-
100423-329 ...SCREW, SHOULDER...SCREW, SHOULDER
-
118050-337 ...WASHER...WASHER
-
125606-160 ...PULLEY, RECOIL...PULLEY, RECOIL
-
135606-157 ...BRACKET, RECOIL...BRACKET, RECOIL
-
140624-250 ...NUT, LOCK...NUT, LOCK
-
151623-722 CLAMP, CABLECLAMP, CABLE
-
163002-964 CLAMP, WIRECLAMP, WIRE
-
178476-650 SCREW, MACHINESCREW, MACHINE
-
180630-230 REGULATOR, RECTIFIERREGULATOR, RECTIFIER
-
190607-922 GUSSET, STEERING SUPPORT - RIGHTGUSSET, STEERING SUPPORT - RIGHT
-
200630-243 ALARM, REVERSE (INC. 21)ALARM, REVERSE (INC. 21)
-
210630-017 ...RING, RETAINING...RING, RETAINING
-
220605-949 SUPPORT, STEERING - ASSEMBLYSUPPORT, STEERING - ASSEMBLY
-
235606-132 PLATE, NUTPLATE, NUT
-
240623-574 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
258408-625 SCREW, CAPSCREW, CAP
-
268408-630 SCREW, CAPSCREW, CAP
-
270607-903 GUSSET, STEERING SUPPORT - LEFTGUSSET, STEERING SUPPORT - LEFT
-
284606-908 BRACKET, SUPPORT - BELT GUARDBRACKET, SUPPORT - BELT GUARD
-
298408-620 SCREW, CAPSCREW, CAP
-
303606-744 BRACKET, FOOTREST - RIGHTBRACKET, FOOTREST - RIGHT
-
303606-745 BRACKET, FOOTREST - LEFTBRACKET, FOOTREST - LEFT
-
318060-686 RIVETRIVET
-
328402-560 SCREW, CAPSCREW, CAP
-
331623-612 SPACERSPACER
-
348427-502 NUT, LOCKNUT, LOCK
-
351623-762 CLAMP, ROUTINGCLAMP, ROUTING
