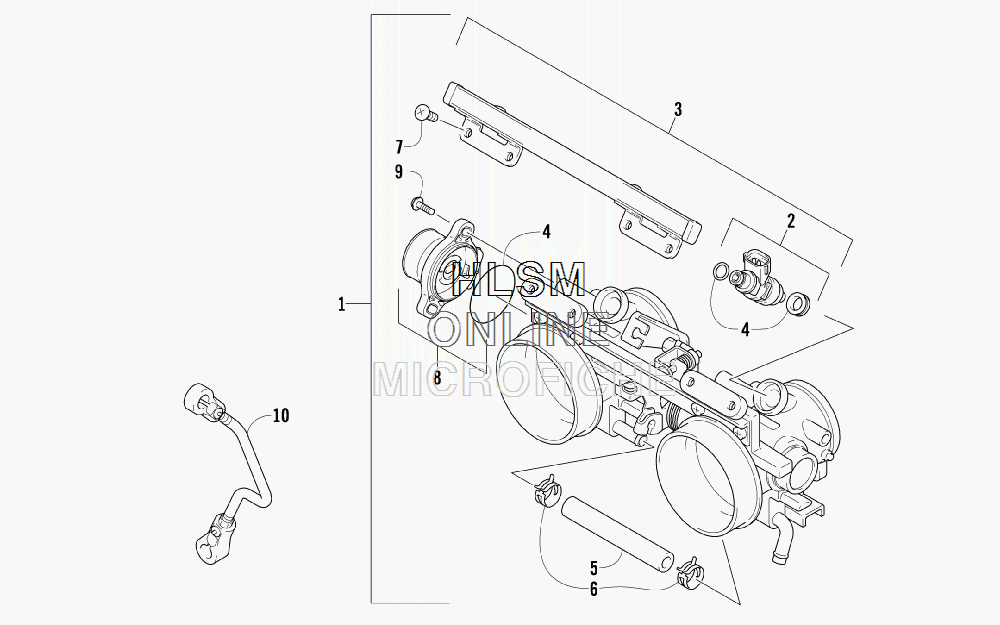

THROTTLE BODY ASSEMBLY для Arctic Cat F8 LXR (ORANGE) - 2011 года выпуска
-
№АртикулНазвание
-
13007-890 BODY, THROTTLE - ASSEMBLY (INC. 2-9)BODY, THROTTLE - ASSEMBLY (INC. 2-9)
-
23007-891 ...INJECTOR, FUEL - ASSEMBLY L (CIRCLE)...INJECTOR, FUEL - ASSEMBLY L (CIRCLE)
-
23007-892 ...INJECTOR, FUEL - ASSEMBLY N (SQUARE)...INJECTOR, FUEL - ASSEMBLY N (SQUARE)
-
23007-893 ...INJECTOR, FUEL - ASSEMBLY S (TRIANGLE)...INJECTOR, FUEL - ASSEMBLY S (TRIANGLE)
-
33007-442 ...PIPE, DELIVERY...PIPE, DELIVERY
-
43005-692 ...O-RING - SET...O-RING - SET
-
53006-723 ...HOSE...HOSE
-
63004-193 ...CLAMP, HOSE...CLAMP, HOSE
-
73007-443 ...SCREW, MACHINE...SCREW, MACHINE
-
83006-939 ...SENSOR, THROTTLE - ASSEMBLY...SENSOR, THROTTLE - ASSEMBLY
-
93007-026 ...SCREW, MACHINE...SCREW, MACHINE
-
103007-538 ROD, CONTROLROD, CONTROL
