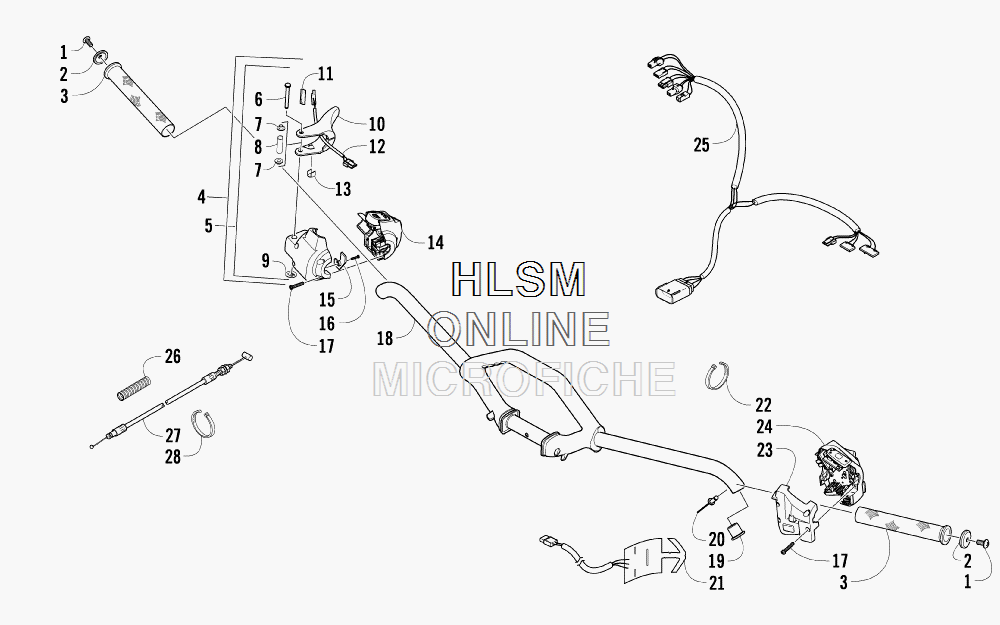

HANDLEBAR AND CONTROLS для Arctic Cat M8 HCR (GREEN) [S2011M8HHCUSG] - 2011 года выпуска
-
№АртикулНазвание
-
11623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
21623-754 WASHER, BACKINGWASHER, BACKING
-
34606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40609-888 CONTROL, THROTTLE - REAR (INC. 5-10)CONTROL, THROTTLE - REAR (INC. 5-10)
-
50609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)...KIT, THROTTLE LEVER MOUNTING (INC. 6-9)
-
90123-766 ......NUT, PUSH - INCLUDED IN KIT......NUT, PUSH - INCLUDED IN KIT
-
100609-797 ...LEVER, THROTTLE...LEVER, THROTTLE
-
110617-248 PAD, INSULATORPAD, INSULATOR
-
120609-827 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
130609-595 CLIP, RETAININGCLIP, RETAINING
-
140609-880 CONTROL, THROTTLE - FRONTCONTROL, THROTTLE - FRONT
-
150609-792 COVER, CONNECTORCOVER, CONNECTOR
-
160609-793 SCREW, MACHINESCREW, MACHINE
-
170609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181705-229 HANDLEBAR (INC. 19-20)HANDLEBAR (INC. 19-20)
-
190605-945 ...INSERT, HANDLEBAR...INSERT, HANDLEBAR
-
208060-682 ...RIVET...RIVET
-
210609-828 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
210609-829 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
220123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
230609-883 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
240609-881 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
251686-566 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
261619-356 LOOM, HIGH-TEMPERATURE - 5 FTLOOM, HIGH-TEMPERATURE - 5 FT
-
270687-218 CABLE, THROTTLECABLE, THROTTLE
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
