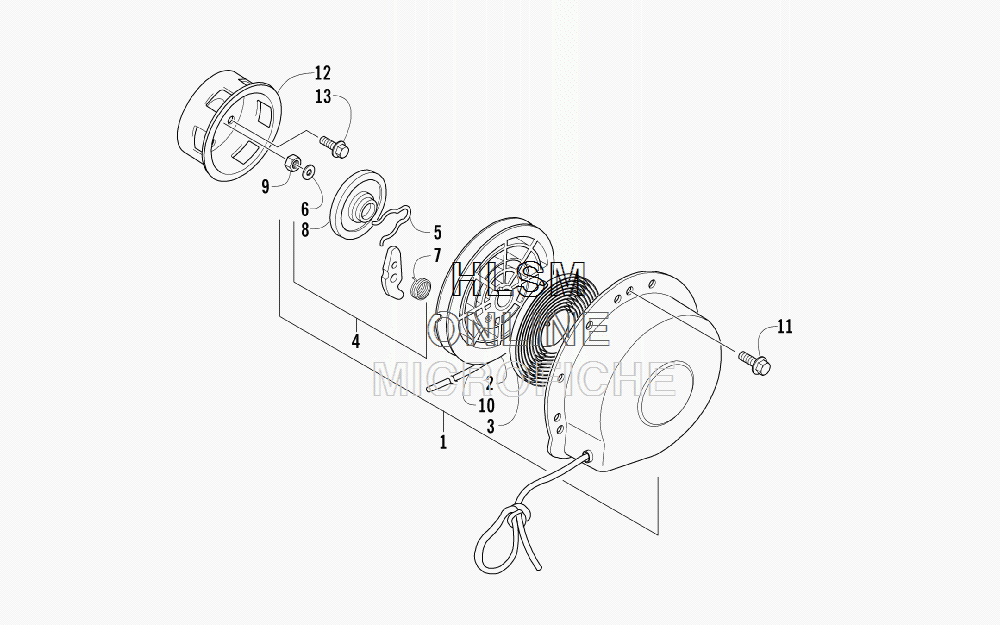

RECOIL STARTER для Arctic Cat SNO PRO 500 - 2011 года выпуска
-
№АртикулНазвание
-
13006-915 STARTER ASSEMBLY (INC. 2-10)STARTER ASSEMBLY (INC. 2-10)
-
23003-179 ...ROLLER, STARTER...ROLLER, STARTER
-
33002-921 ...SPRING...SPRING
-
43006-457 ...RATCHET SET (INC. 5-7)...RATCHET SET (INC. 5-7)
-
83006-475 ...PLATE, FRICTION...PLATE, FRICTION
-
93006-456 ...NUT...NUT
-
103006-889 ...ROPE, STARTER...ROPE, STARTER
-
113007-609 SCREW, CAPSCREW, CAP
-
123005-531 PULLEY, STARTERPULLEY, STARTER
-
133007-407 SCREW, CAPSCREW, CAP
