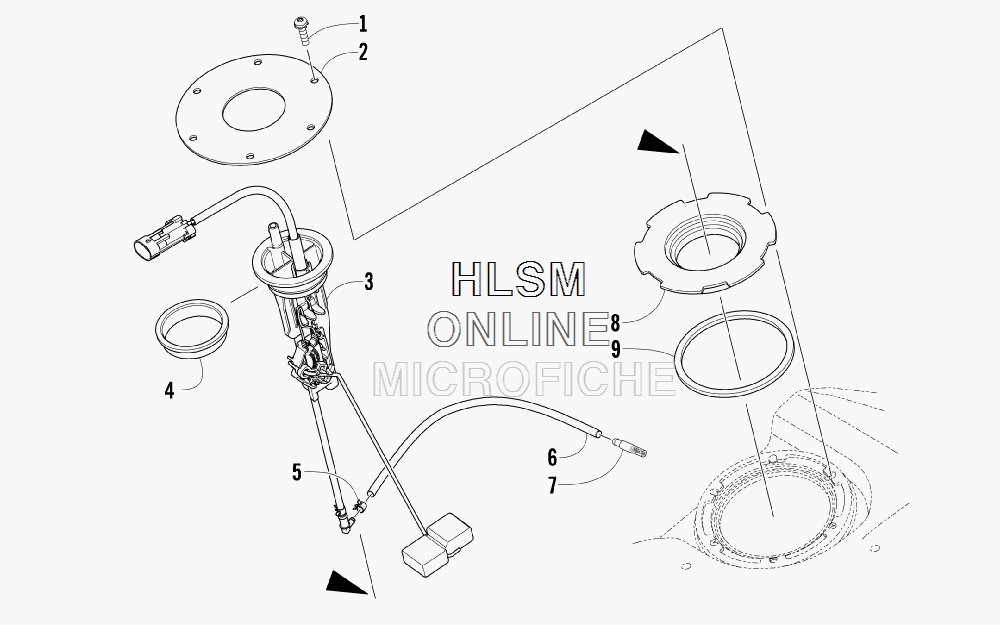

FUEL LEVEL SENSOR ASSEMBLY для Arctic Cat T570 - 2011 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
20470-848 PLATE, RETAININGPLATE, RETAINING
-
32670-157 SENSOR, FUEL LEVEL - ASSEMBLYSENSOR, FUEL LEVEL - ASSEMBLY
-
40470-521 SEALSEAL
-
51623-233 CLAMP, HOSECLAMP, HOSE
-
66101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
66101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
70510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
80470-847 ADAPTER, FUEL LEVEL SENSORADAPTER, FUEL LEVEL SENSOR
-
90470-838 SEALSEAL
