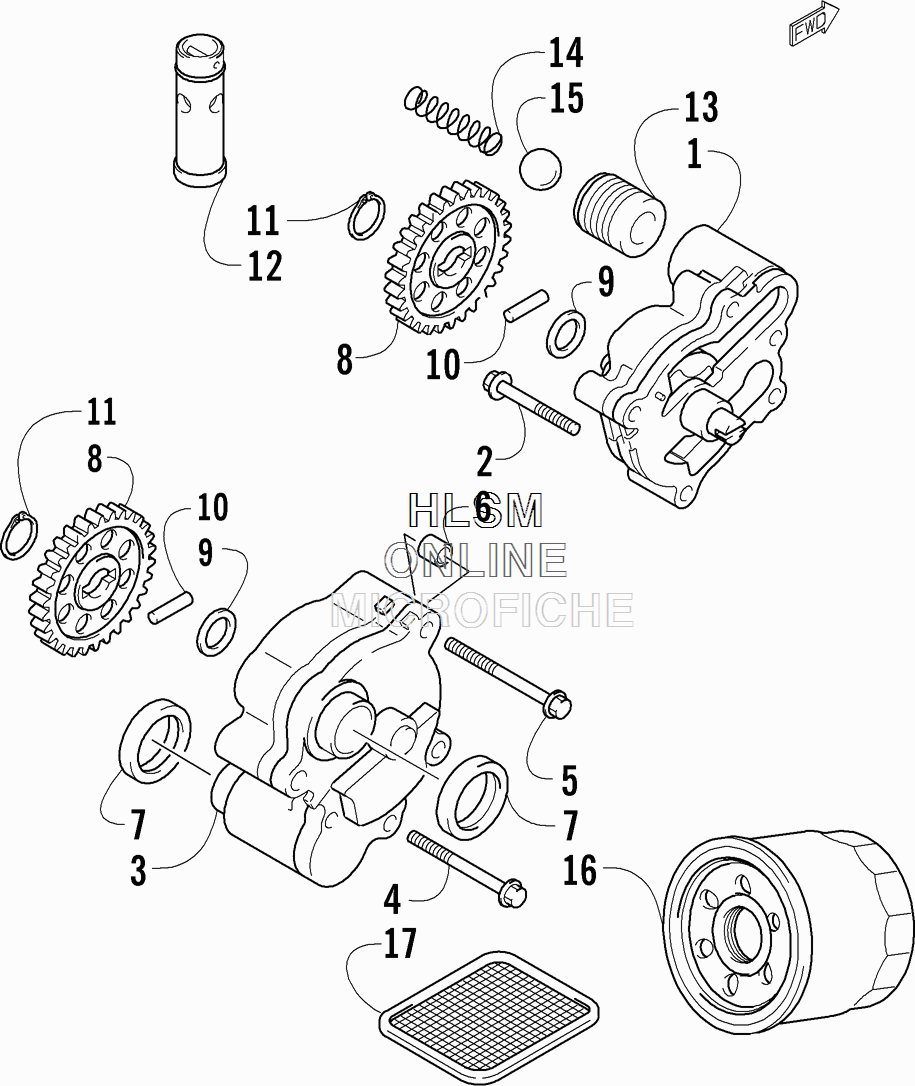

OIL PUMP ASSEMBLY для Arctic Cat Z1 LXR (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
13007-161 PUMP, OIL - FEEDPUMP, OIL - FEED
-
23007-496 BOLT,CYL HEADBOLT,CYL HEAD
-
33007-162 PUMP, OIL - SCAVENGEPUMP, OIL - SCAVENGE
-
43007-505 BOLT,OIL PANBOLT,OIL PAN
-
53007-370 BOLT,CYLINDER HEAD COVER NO. 2BOLT,CYLINDER HEAD COVER NO. 2
-
63005-206 PIN, DOWELPIN, DOWEL
-
73007-163 SEAL, OILSEAL, OIL
-
83007-164 GEAR, DRIVENGEAR, DRIVEN
-
93007-165 WASHERWASHER
-
103007-166 PINPIN
-
113423-876 CIRCLIPCIRCLIP
-
123007-167 VALVE, OIL-RELIEFVALVE, OIL-RELIEF
-
133007-168 SEAT, OIL-FEED CHECK VALVESEAT, OIL-FEED CHECK VALVE
-
143007-169 SPRING, OIL-FEED CHECK VALVESPRING, OIL-FEED CHECK VALVE
-
153007-170 BALL, OIL-FEED CHECK VALVEBALL, OIL-FEED CHECK VALVE
-
163007-171 FILTER, OILFILTER, OIL
-
173007-172 STRAINER, OILSTRAINER, OIL
